2.PREPARATION INSTALLATION B-75074EN/04

- 88 -

2.3.5 Installing IIS 4.0 (Web Function) for Windows NT

NOTE

The user who makes the setting described in this

section must have the "administrator privilege".

Installing Internet Information Server 4.0 (IIS4.0) requires the

following software A to D. Software A can be purchased from a

software vender. B to E saved to CD-ROM can be each purchased for

1,000 yen or so by ordering them at the Microsoft Web site

(http://www.microsoft.com/japan/support/).

A. Windows NT Server 4.0 operating system (always required)

B. Windows NT Service Pack 3 (whether this is required is

determined at steps <1> and <2>)

C. Windows NT Service Pack 6a (always required)

D. Windows NT 4.0 Option Pack (always required; includes IIS4.0)

E. Internet Explorer 5.5 (always required)

It is difficult to additionally install IIS4.0 in a Windows NT Server PC

where IE5.x is already installed. If it is impossible to install IIS4.0

with the following procedure, you should start by getting a new PC

and installing Windows NT Server in it.

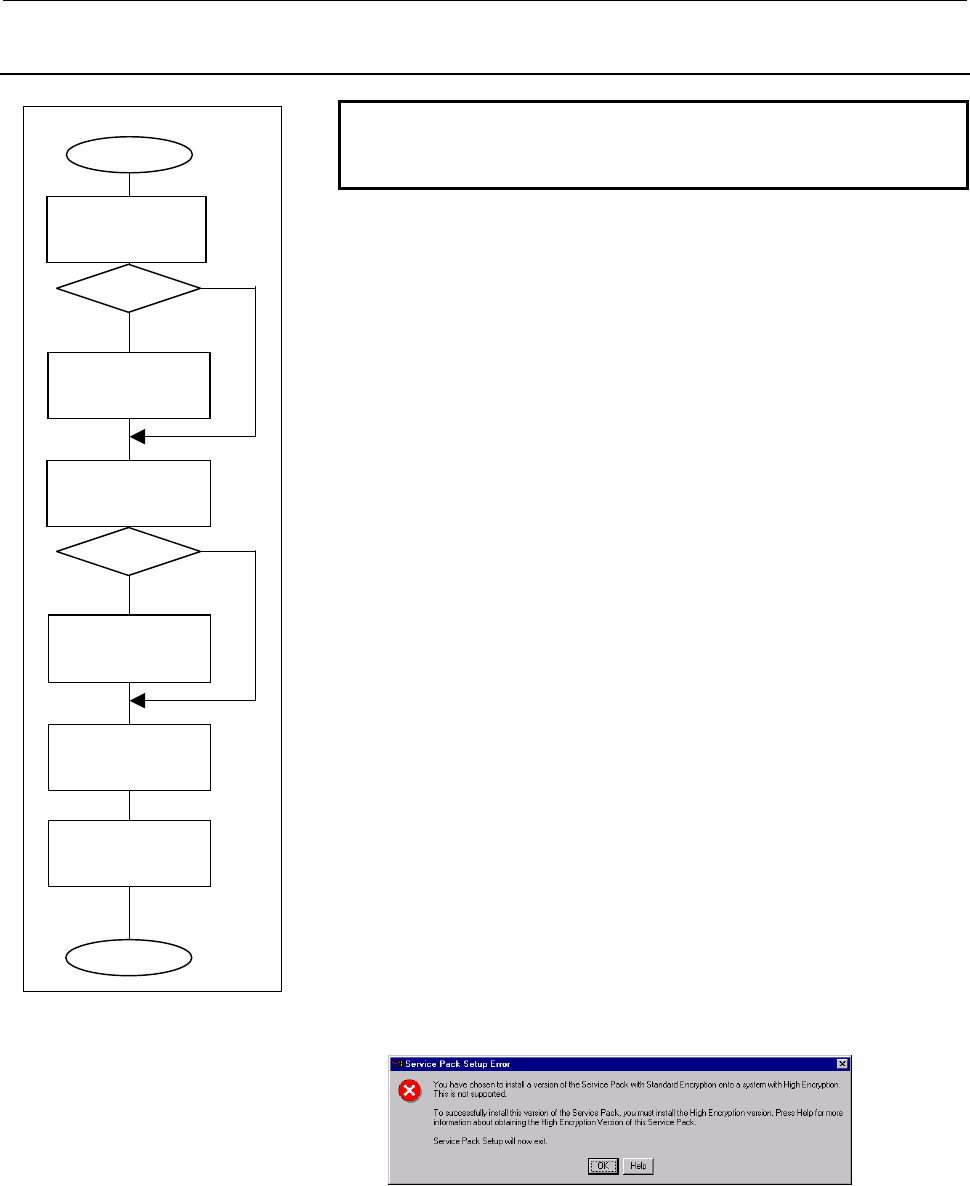

To install Windows NT 4.0 Option Pack, follow this procedure.

<1> Check the version of Service Pack (hereafter abbreviated as SP)

applied to Windows NT Server. When you execute the version

information command from the help menu of File Explorer, the

message "Service Pack?" appears.

<2> If the current version is earlier than SP3, apply SP3.

<3> Check the version of Internet Explorer (hereafter abbreviated as

IE). The version is displayed by executing the version

information command from the help menu.

<4> If IE5 or later is already installed, uninstall it.

<5> Install Option Pack. A message prompting you to install IE4.01

appears. Install IE4.01 from Option Pack. Option Pack can run

even if "minimum" is selected for the options when Option Pack

is installed. IIS4.0 shall be set up after i CELL is installed. See

Appendix F.1, "SETTING UP IIS", for detailed explanations

about how to set up IIS4.0.

<6> Install SP6a. When you are trying to install SP6a, the following

message may appear to indicate that it is impossible to install

SP6a.

In this case, install SP6a by following the solution procedure

presented in the Microsoft-issued support information (document

code Q250867) "It is impossible to install Service Pack 6a if

there is a highly encrypted IE" (which can be downloaded from

the Microsoft Web site).

<1>

Check the version

of Service Pack

<2>

Install Service Pack

Yes

<3>

Check the version

of Internet Ex

lorer.

<4>

Uninstall IE5.x.

<5>

Install Option Pack.

<6>

Install Service Pack

6a.

Start

End

Earlier than 3?

Yes

5 or later?
