B.NC SETTING APPENDIX B-75074EN/04

- 532 -

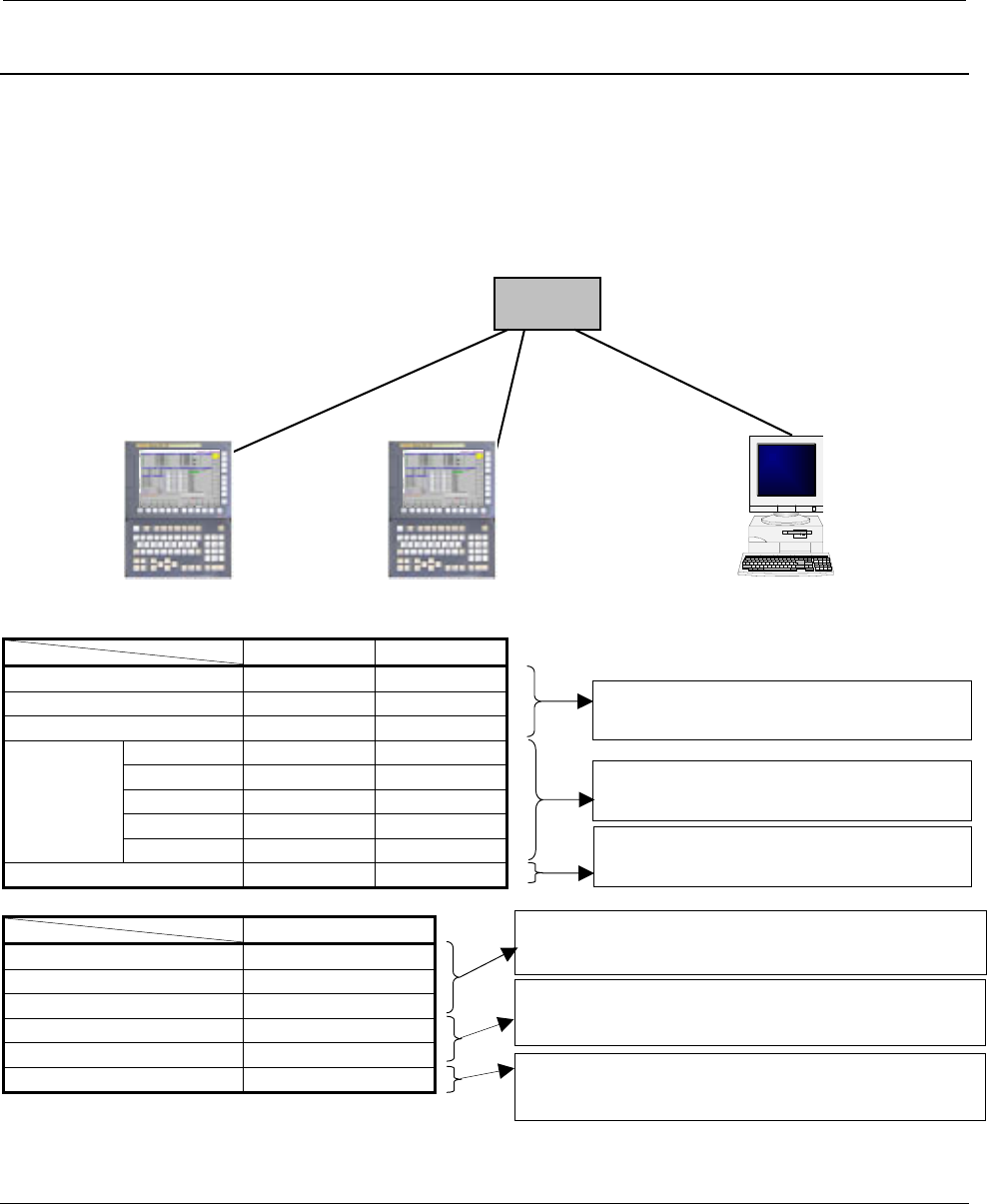

B.6.3.2 Configuring a small-scale network

The following shows an example of the minimum settings needed to run

the Data Server functions on a small-scale network.

These settings allow a personal computer to be connected to two CNCs

by the Data Server.

• The FTP server runs on personal computer No.1.

• The FTP client runs on CNCs No.1 and No.2.

CNC 1 CNC 2

IP address 192.168.0.1 192.168.0.2

Subnet mask 255.255.255.0 255.255.255.0

Router IP address None None

Port number 21 21

IP address 192.168.0.101 192.168.0.101

User name Dtsvr dtsvr

Password Dtsvr dtsvr

Connection

host 1

NC parameter No. 20 5 5

PC 1

IP address 192.168.0.101

Subnet mask 255.255.255.0

Default gateway None

User name dtsvr

Password dtsvr

B.6.3.3 Configuring a large-scale network

Before you configure a large-scale network or add such a network to an

existing network, consult your company's network administrator to

determine IP addresses, subnet masks, and router IP addresses.

Personal

computer No.1

CNC No.2

CNC No.1

100BASE-TX or 10BASE-T

HUB

The Data Server screen is used for setting.

The parameter screen is used for setting.

"Microsoft TCP/IP property" of the personal computer

(Windows 2000/XP) is used for setting.

"User acount of the personal computer (Windows

2000/XP) is used for setting.

"Internet service manager" of the personal computer

(Windows 2000/XP) is used for setting.

The COMMON screen is used for setting.
