B-75074EN/04 OPERATION 8.NC DISPLAY AND OPERATION

- 341 -

8.5 PARAMETER SETTING

The parameter setting screen can be used to set NC parameters.

NOTE

When setting parameters, place the NC in the

following states:

• Setting data

- Set "PARAMETER WRITE" to ENABLE.

• Operation state

- Emergency stop state

- Operation stop/halt state in the MDI mode

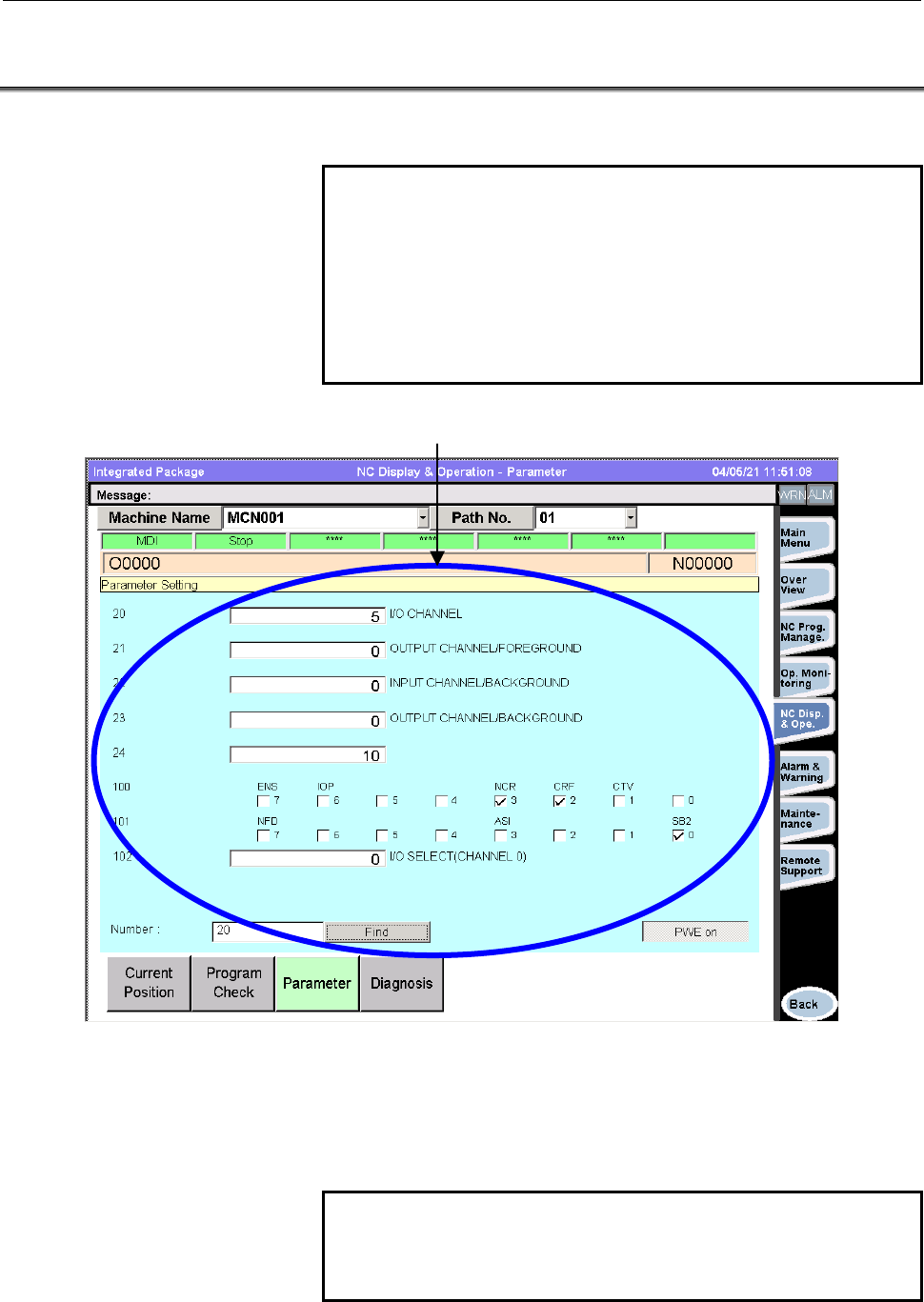

Example of the parameter setting screen

<1> Parameter setting

• Enabling/disabling parameter write operation

Click the [PWE off] button to change it to [PWE on].

Click the [PWE on] button to change it to [PWE off] state.

NOTE

To change [PWE off] to [PWE on], the NC must be

placed in the emergency stop state or

stopped/halted in the MDI mode.

<1> Parameter setting
