B-75074EN/04 GENERAL 9.WEB FUNCTION

- 67 -

9.1 IMPLEMENTING THE MAIL FUNCTION AND WEB

FUNCTION WITH 24-HOUR CONNECTION

In order to use the i CELL Web function, a 24-hour connection is

needed. For a 24-hour connection, the jobs described below are

required.

• A contract with a provider for a 24-hour connection is needed.

Settings such as for DNS are made on the personal computer.

• On the personal computer, IIS needs to be set. See Appendix F.1,

"SETTING UP IIS".

• The personal computer needs to be connected with a dial-up router.

For the method of connection, refer to the relevant manual of the

dial-up router.

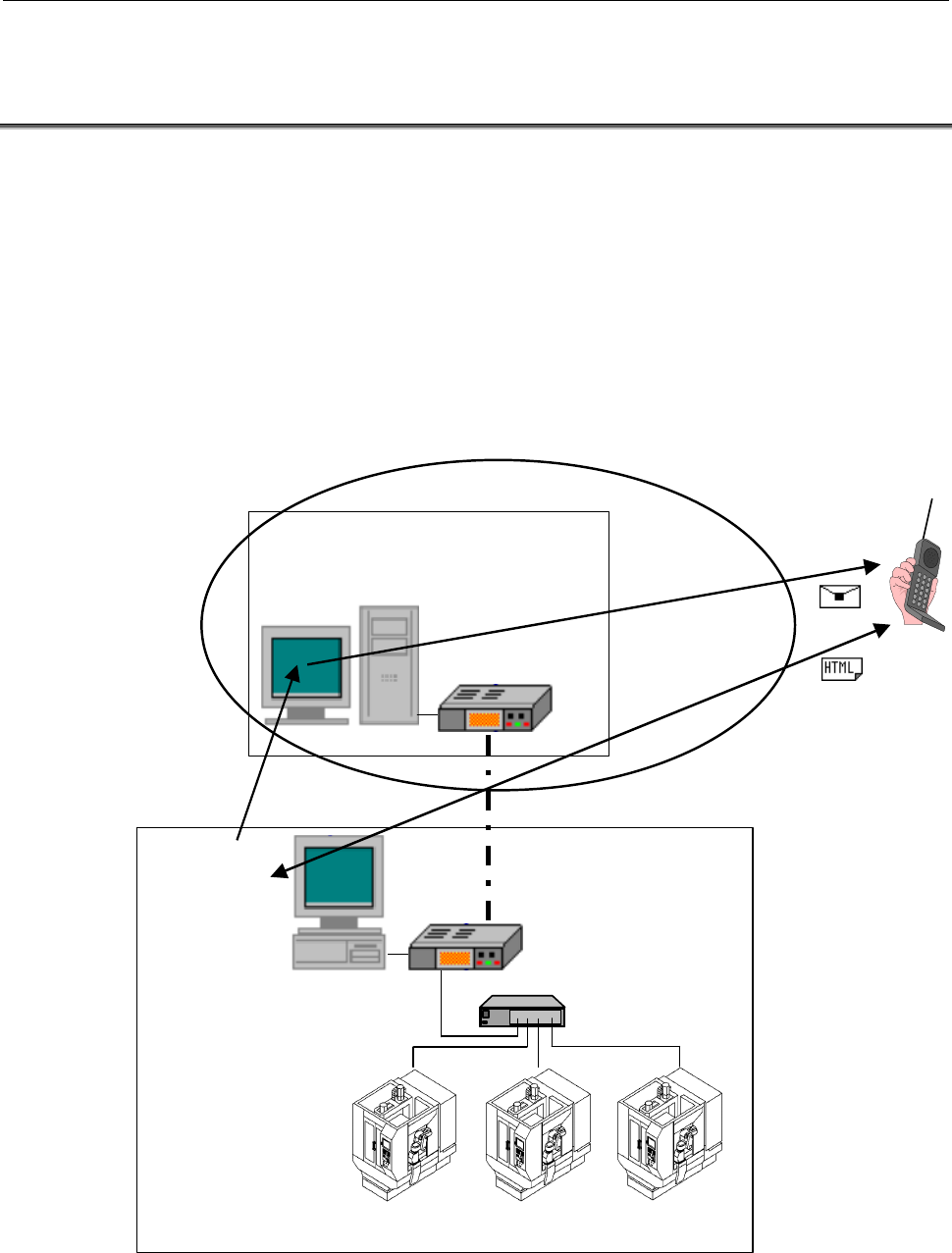

Internet service provider

Mail server

Hub

CELL

Dial-up router

Router

ISDN line

Internet

Mail function

Web function

192.168.0.101 192.168.0.102 192.168.0.103

172.16.15.2

192.168.0.100

172.16.15.1

192.168.0.1

172.16.0.10

172.16.0.1

Factory

i-mode cellular phone or

remote personal computer

100.100.100.100

Note) To provide

security,

operate the

dial-up router

as a firewall.
