F.SETTING UP PC APPENDIX B-75074EN/04

- 580 -

F.1.3 Adding the Access Permission for Directories for Windows

2000

The WEB directory is in the directory where i CELL is installed. The

access permission for this directory is given to the "IUSR_ICELL" user

created according to Subsection 2.1.5, "Registering the New User

"IUSR_ICELL" (Web Function) for Windows 2000," in Part II,

"Installation."

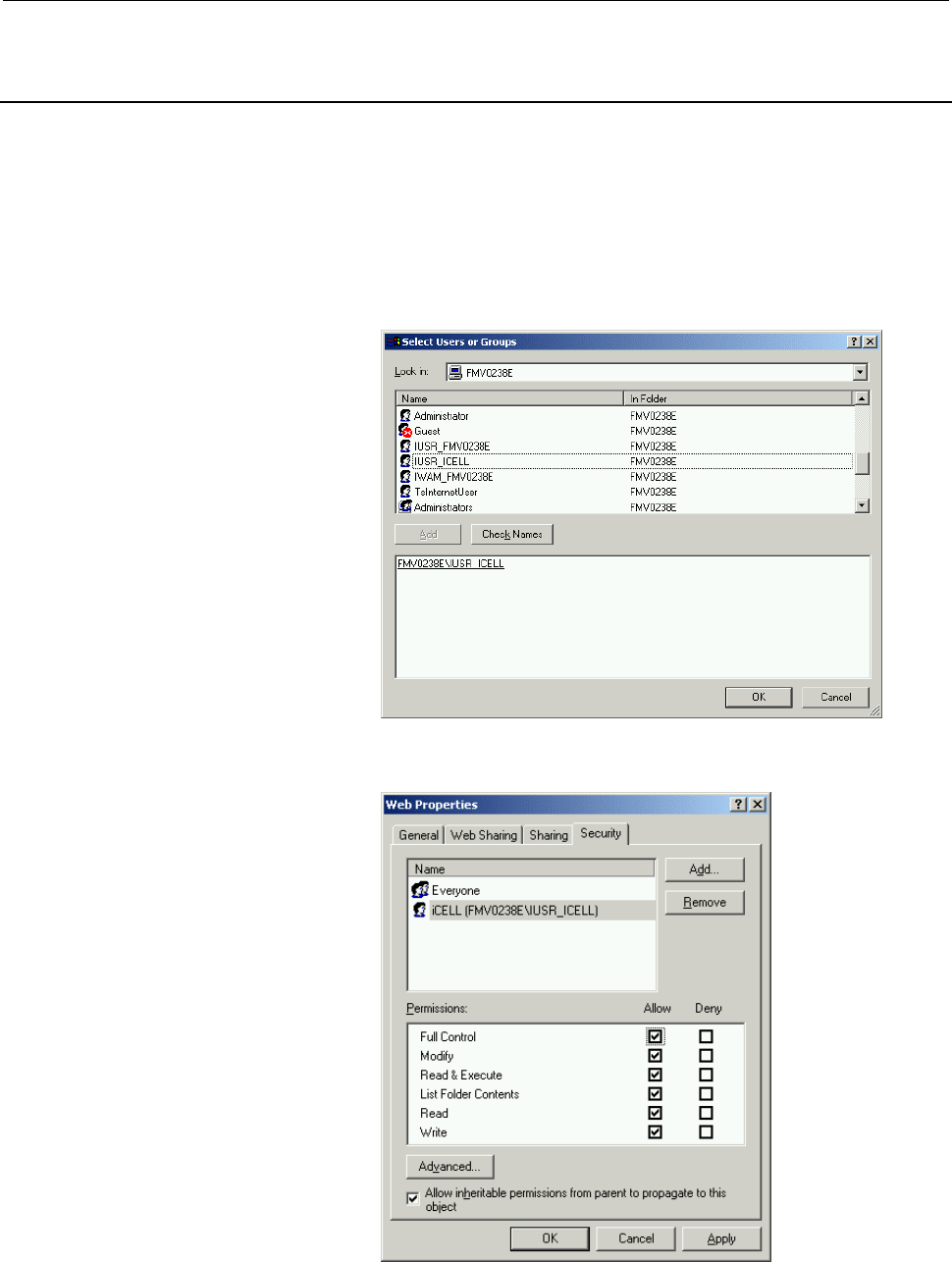

1. Select [Properties] of [WEB Directory] → [Add] of [Security] →

[Show Users], and add the [IUSER_ICELL] user, then click "OK".

2. In the Name list box, select [iCELL], check the Allow check box

of Full Control, then click [OK].
