B-75074EN/04 OPERATION 4.OVERVIEW MENU

- 253 -

4.4.2 Editing the Overview Screen

When adding machines by editing the overview screen, use the

procedure below.

Opening the overview screen with CimEdit

Open the overview screen with CimEdit of CIMPLICITY. (For the

method of CimEdit operation, refer to the relevant manual of

CIMPLICITY.)

The overview screen is stored at the following location:

Directory name : %iCELL%\CimProject\Screens

File name : OverViewMenu.cim

(%iCELL% is the directory where the i CELL is installed.)

Changing the number of objects

To change the number of machines, change the number of status group

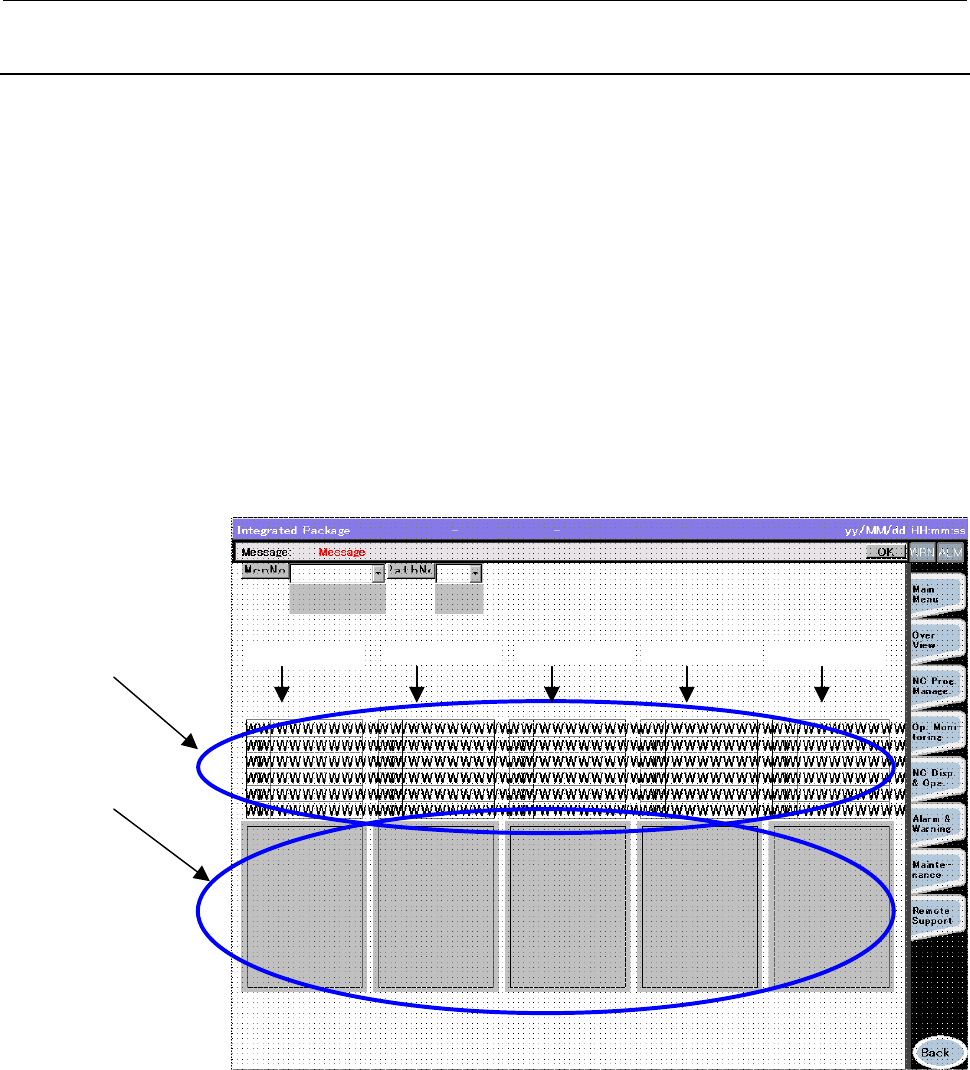

objects and machine figure objects. The figure below provides an

example of opening the overview screen with CimEdit.

By default, the number of status group objects is 5, and the number of

machine figure objects is 5. Change these numbers as required.

To decrease these numbers, delete unnecessary objects.

To increase these numbers, copy and paste desired objects.

To each machine, only a status group object or only a machine figure

object can be assigned.

<1> Status group

object

<2> Machine figure

object

For machine 1 For machine 2 For machine 3 For machine 4 For machine 5
