2.BASIC FUNCTIONS SETTING B-75074EN/04

- 130 -

2.5 MACHINE INFORMATION

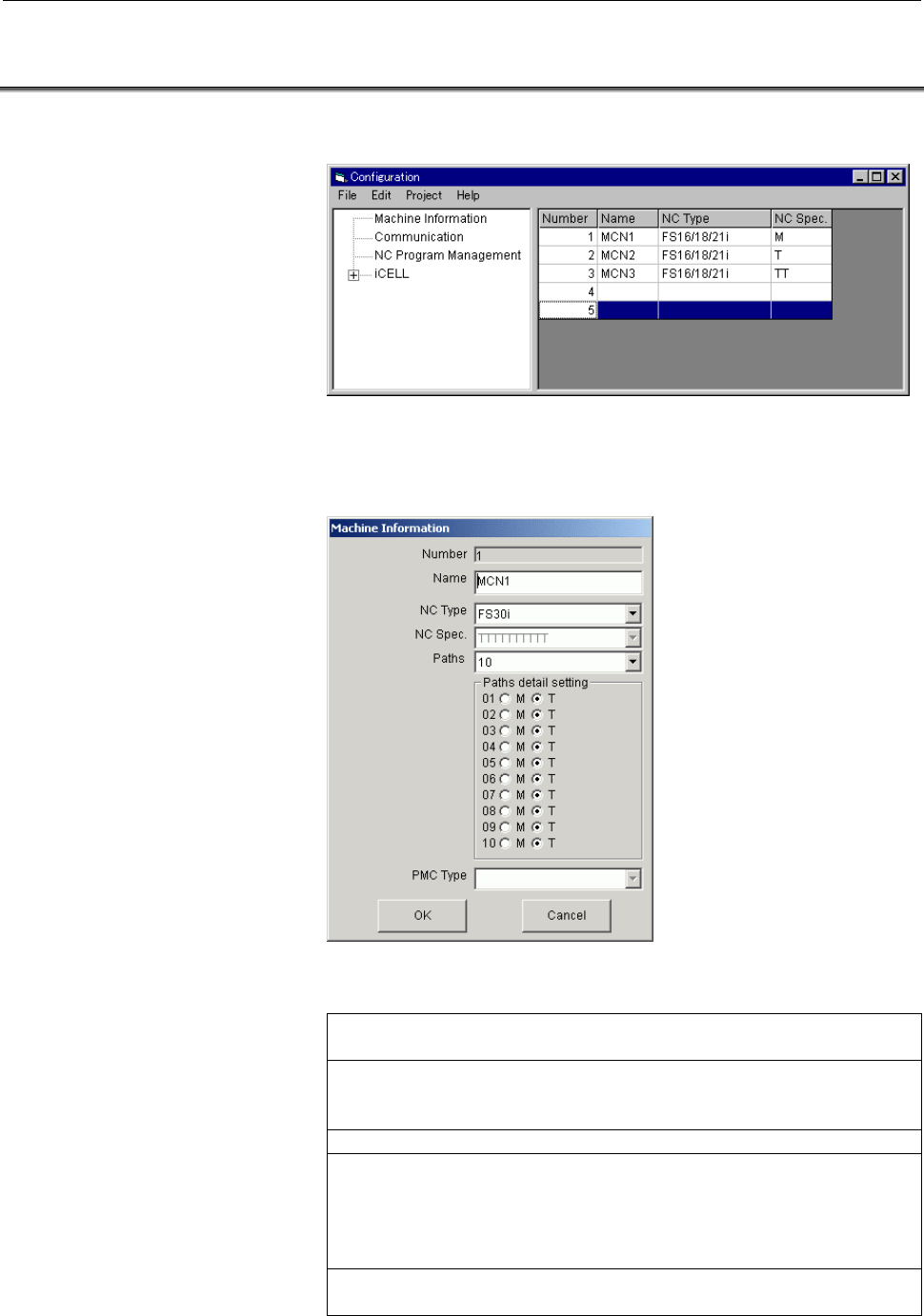

Selecting “Machine Information” from the tree lists, in the grid, the

machines that were previously set up.

If you double-click the row of a machine in the grid, or if you click the

row of a machine row in the grid and select Edit from the menu bar, then

Property from the Edit menu, the Machine Information dialog box

appears.

The setting items of this dialog box are explained below:

Number

This box displays the machine number for the machine

selected from the grid. It cannot be changed.

Name

This box lets you specify the name of the selected

machine. The machine name is up to 20 alphanumeric

characters. It must always be specified.

NC Type

Select the NC type of the machine.

NC Spec.

Select the NC specification (path) of the machine.

The displayed options differ depending on the selected

NC type. With Series 30i/31i/32i, detailed path

information is set using "Paths" and "Paths detail

setting", so that this box is not used.

Paths

Set the number of CNC paths. This box is usable only

with Series 30i/31i/32i.
