B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 129 -

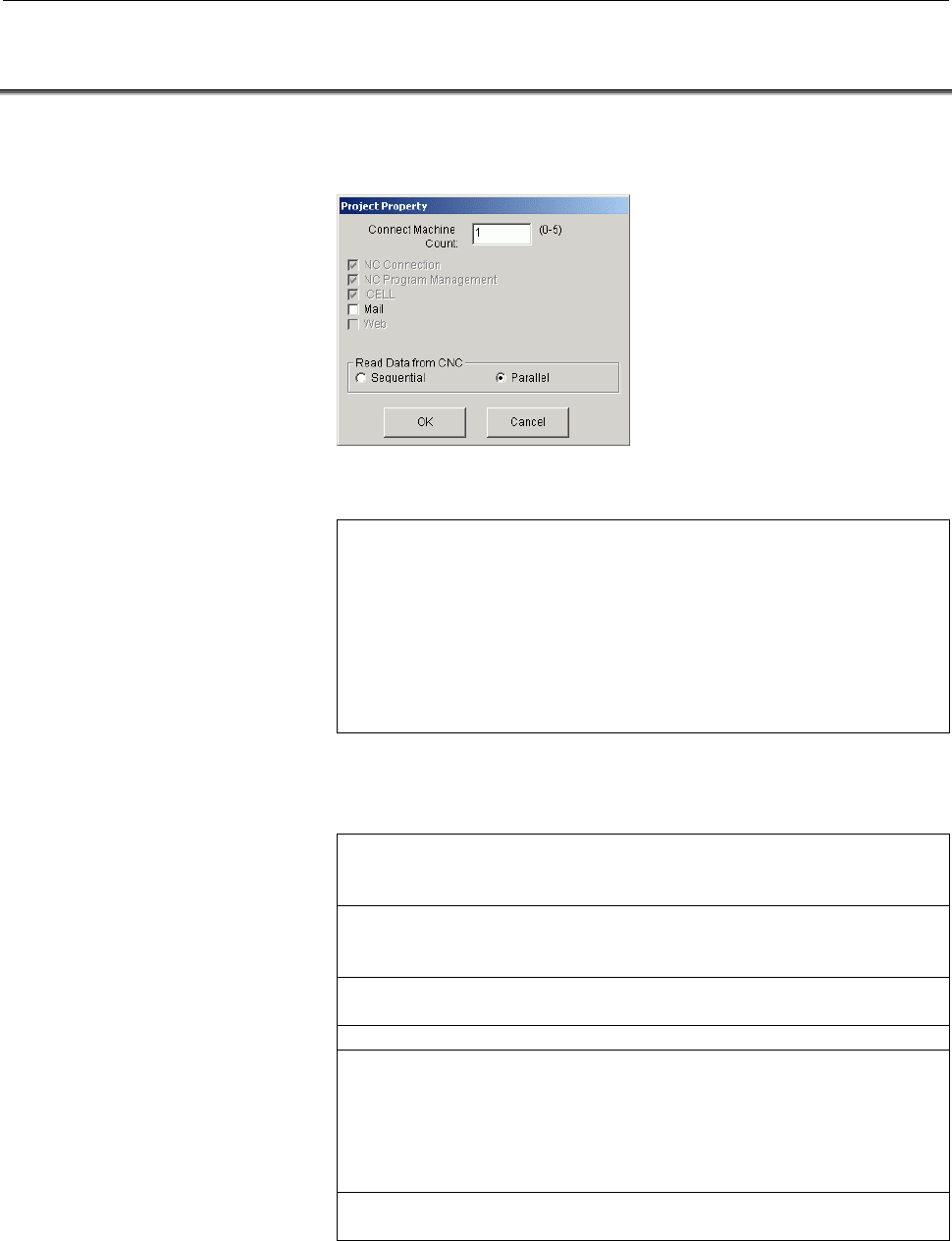

2.4 PROJECT PROPERTY

Selecting Project from the menu bar of the Configuration dialog box,

then Property from the Project menu displays the Project Property

dialog box.

This dialog box lets you make the settings related to the entire i CELL

project.

Specify the number of machines you want to connect. You can

specify as many machines as the total number of machines

allowed for the available order passwords. The range of

numbers you can enter is displayed to the right of the entry box.

Connect

Machine

Count

CAUTION

It is impossible to include, as a target for deletion, any

machine for which functions are enabled in i CELL settings.

To include a machine as a target for deletion, make sure that

all i CELL functions are disabled for the machine.

If you want to use any functions from NC Connection to Web in the

i CELL project, turn on the corresponding check boxes to select the

functions. The tree displays the setting items for the selected functions.

NC Connection

To transfer data between CIMPLICITY and the NC,

turn on this check box.

The checked state cannot be changed.

NC Program

Management

To perform NC program management on a PC, turn on

this check box.

The checked state cannot be changed.

iCELL

To use i CELL, turn on this check box.

The checked state cannot be changed.

Mail

To use the mail function, turn on this check box.

Web

To use the Web function, turn on this check box.

This item can be selected only on a Windows 2003

server , Windows 2000 server or Windows NT server.

For a Windows XP Professional, Windows 2000

Professional or Windows NT workstation, the Web

function cannot be selected because it is unavailable.

Read Data from

CNC

Set a method of reading data from the CNC. Check the

default, namely, "Parallel".

Clicking the OK button saves what you specified and closes the Project

Property dialog box. Clicking the Cancel button discards what you

specified when closing the dialog box.
