B-75074EN/04 SETTING 2.BASIC FUNCTIONS

- 165 -

2.9.1 Workpiece Process Result

Overview

Using the workpiece process result requires that the NC inform i CELL

of the beginning and end of the process, and, if necessary, the

workpiece ID and process end ID. This information transfer between

the NC and i CELL is performed using the custom macro variables of

the NC.

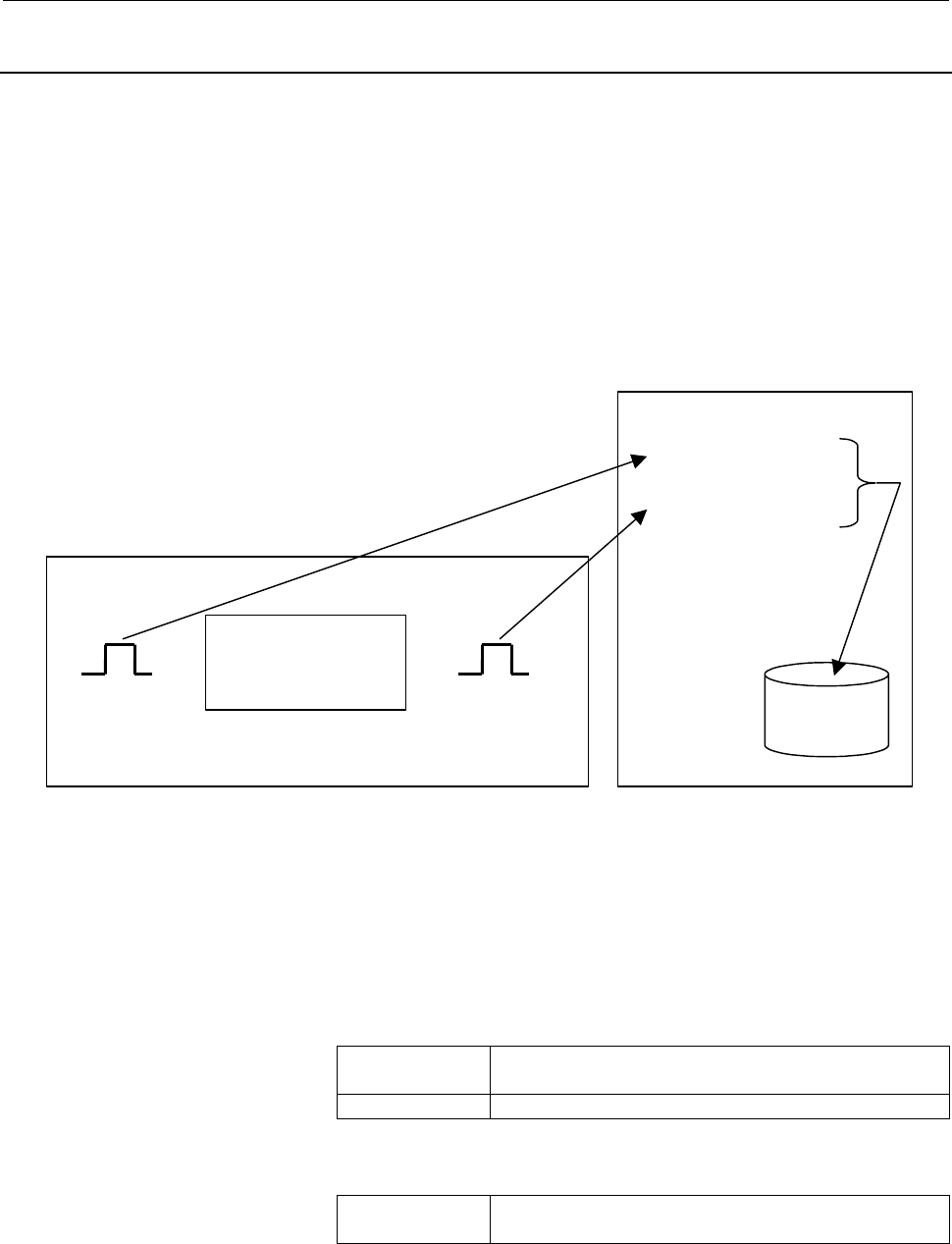

The NC changes the values of custom macro variables that mean the

beginning and end of the process, using an NC program. i CELL reads

these values periodically to judge on the beginning and end of the NC

process, and records the result in a database.

CELL

Judge on the beginning

of the process.

Judge on the end of the

process.

Write the workpiece

process result to a

database.

Custom macro

variable for the

beginning of the

rocess

Workpiece machining

Custom macro

variable for the

end of the

process

NC program

Periodical reading

Accordingly, the following procedure is needed to set up the workpiece

process result.

<1> Determine what items are to be acquired from the NC.

<2> Determine to which custom macro variables the items to be

acquired are to be assigned.

Items to be acquired from the NC

i CELL collects the following required and optional items from the NC,

using the Workpiece Process Result tab.

Required items

Sequence Number, Process Begin, Process End,

Handshake ON/OFF

Optional items

Workpiece ID, O Number, Process End ID, User Area ID

Handshaking with the NC for informing of the beginning and end of the

process requires the items listed below.

Items required

in handshaking

Confirmation of Begin, Confirmation of End
