B.NC SETTING APPENDIX B-75074EN/04

- 498 -

B.3.2 Setting the FTP Server

This subsection describes the setting required to use the FTP server

function of the Data Server.

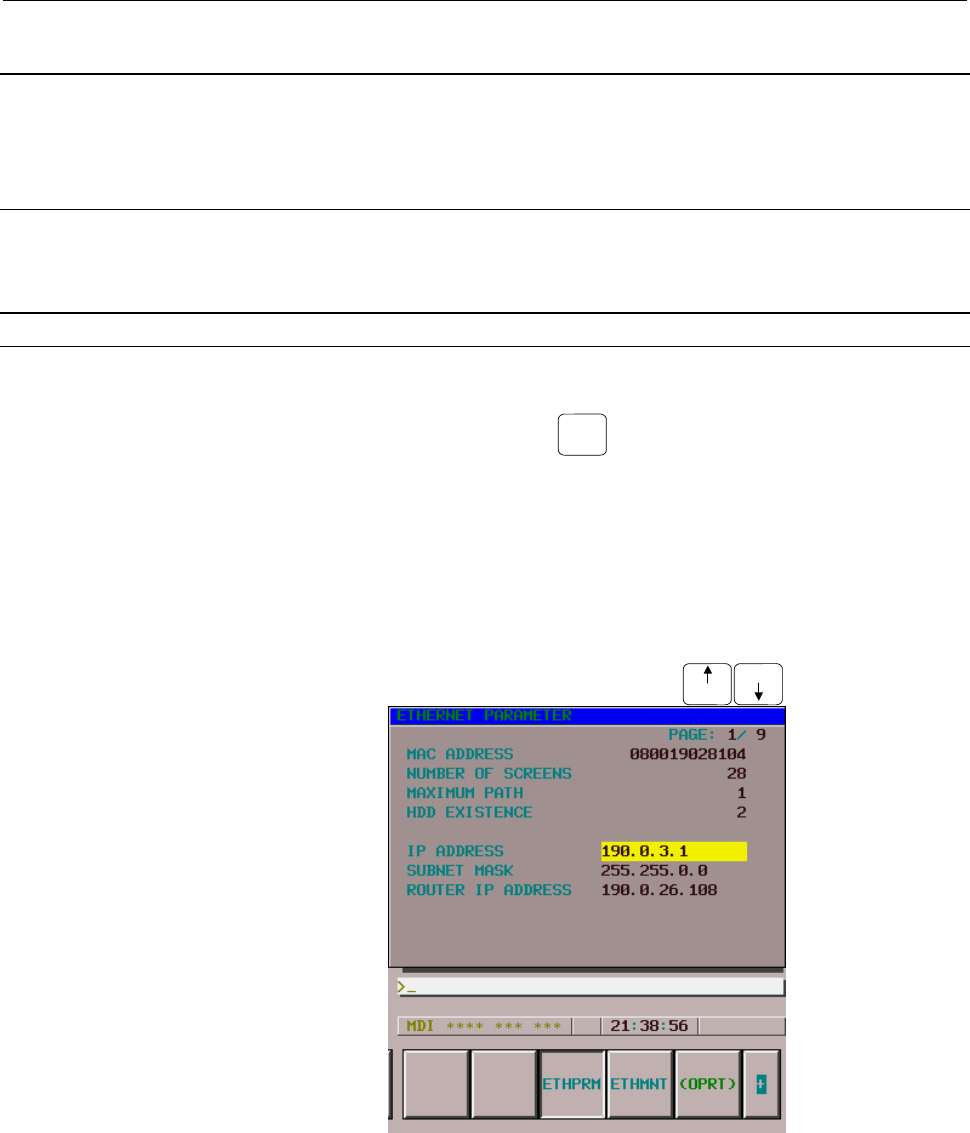

B.3.2.1 Ethernet parameter screen

The Ethernet Parameter screen is used to set parameters that are needed

to run the Data Server functions.

Display

Procedure

1 Place the CNC in MDI mode.

2 Press function key

SYSTEM

3 Press the Continuation menu key at the bottom right of the soft key

menu.

4 When you press soft key [ETHPRM], the "Ethernet Parameter"

screen appears.

For the Series 16i/18i/21i-B, to display the "Ethernet Parameter"

screen, press soft key [ETHPRM] and then soft key [BOARD].

If data is already registered, the parameter settings are displayed.

5 Enter or update the data using the MDI or soft keys.

6 Select the desired page using the

PAGE

page keys.
