B-75074EN/04 OPERATION 5.NC PROGRAM MANAGEMENT

- 271 -

Creating New Files in the PC

NOTE

1 If you have selected the "Disable Editor" option in

the Options menu, the [New File] menu is not

displayed.

2 You can create files only when you have selected

the default directory of the selected machine.

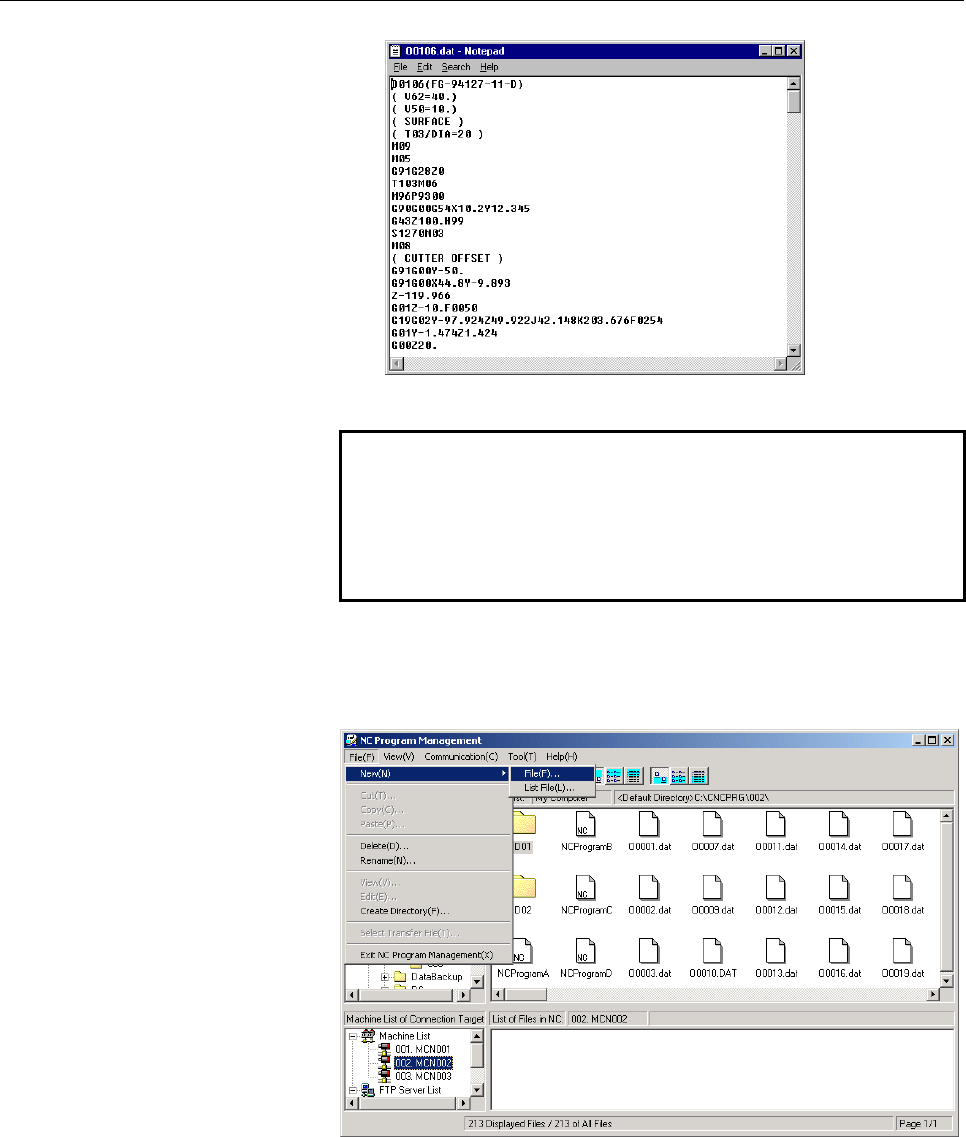

1 In the PC Directory Trees, select the default directory of the

selected machine.

2 Point at the [New] command in the [File] menu. File types that can

be created are displayed. Click the desired file type.

• When the file is selected in the File List, the editor that you

specified in the Options menu is displayed. Use this editor for

creating NC programs or subprogram.

• When the file is selected outside of the File List, the Edit File

List screen is started. Use this screen for creating the File List.

Refer to 5.3. “EDIT LIST FILE SCREEN OPERATIONS”

for details of operations in the Edit File List screen.
