2.BASIC FUNCTIONS SETTING B-75074EN/04

- 146 -

2.6.6 Data Server Communication Setting

NOTE

When only the Data Server function of the NC is

used and no other i CELL functions are used, see

Section 2.8, "NC PROGRAM MANAGEMENT - FTP

CLIENT SETTINGS".

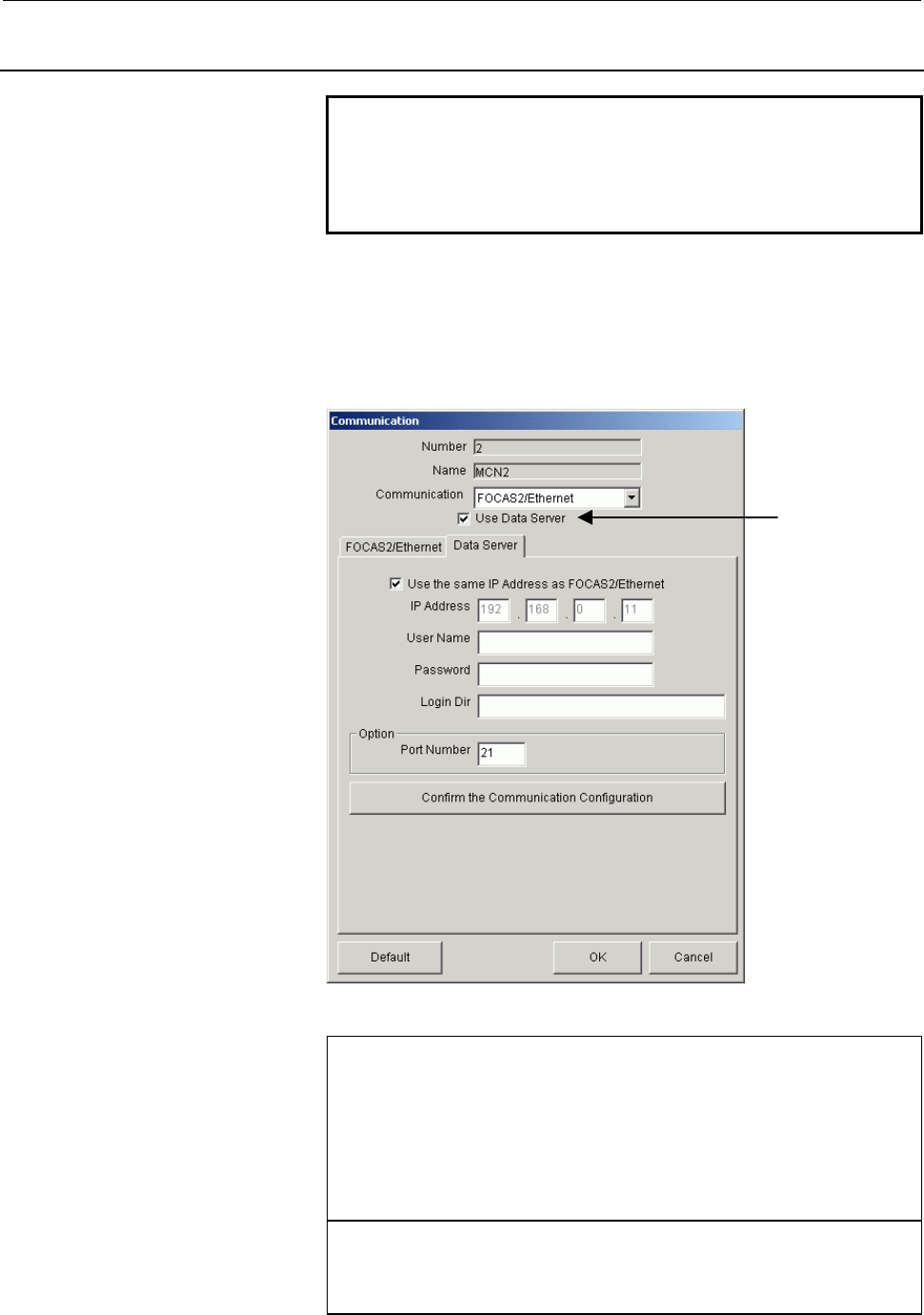

The setting screen of each communication protocol has a "Use Data

Server" check box.

When transferring NC programs on the NC program management

screen by using the Data Server function of the NC, check this check

box. A tab for Data Server setting is displayed.

Check here.

The setting items of this dialog box are explained below.

Use the same IP address

as FOCAS2/Ethernet

Displayed only when the communication

protocol is FOCAS2/Ethernet.

This box is checked by default.

If the IP address of the Data Server on the NC

is the same as that of FOCAS2/Ethernet,

check this box. Otherwise, clear this box.

When this box is cleared, the next IP address

item can be set.

IP Address

Specify the IP address of the Data Server.

No default value is assigned.

Set the same value as the "IP Address" of

the Data Server set on the NC.
