AC Spindle Motor Alpha Series Parameter manual Page 28

Parameter manual

Page of 424

/ 424

B–65160E/02

1. ADJUSTMENT

FANUC AC SPINDLE MOTOR a series

MGSEN:Indicates the mounting direction of magnetic sensor.

0: Rotates the motor and magnetic sensor in the same direction.

1: Rotates the motor and magnetic sensor in the reverse direction.

The normal rotation command (SFRA = 1) rotates the spindle motor

counterclockwise (CCW) when the motor shaft is viewed from the near

side.

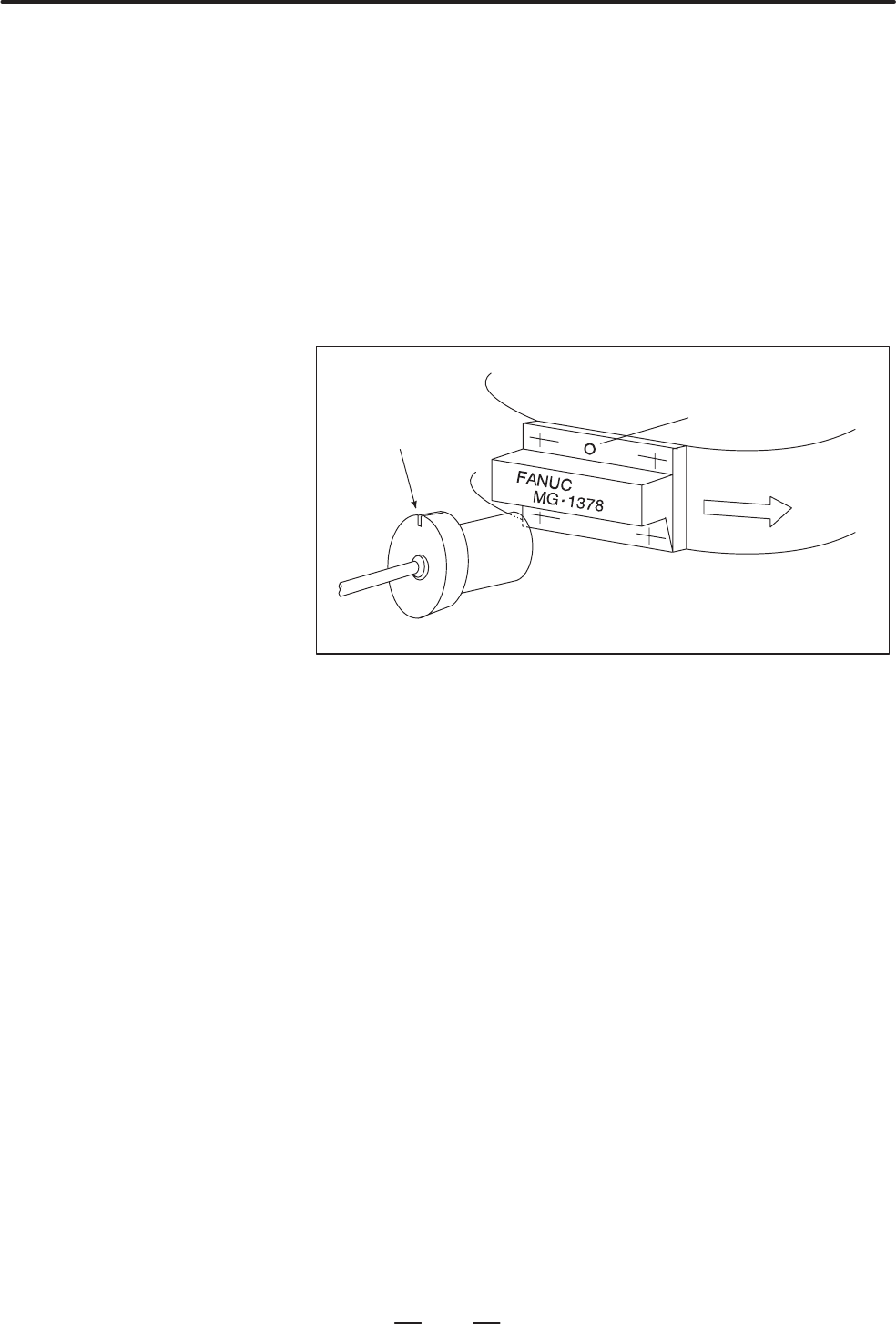

Align the magnetizing element marking hole and the magnetic sensor pin

groove so that the magnetizing element and magnetic sensor rotate as

shown below when SFRA = 1.

In this case, set this bit to 0.

Set this bit to 1 for the reverse rotation direction.

Magneticsenser

head pin groove

Magnetizing element

marking hole

Rotating

direction

CAXIS1:Determines whether the high-resolution magnetic pulse coder is used

or not.

0: Not used.

1: Used.

Set for 1 if it is with Cs contouring control function is used.

Set for 1 if it is with high–resolution position coder.

CAXIS2:Also used in speed detection of the position detection signal for Cs

contour control.

0: Not used. (when spindle and spindle motor are separated)

1: Used. (in case of built-in spindle motor)

CAXIS3:Indicates the mounting direction of the position detector for Cs contour

control.

The Power Mate does not have this function.

0: Rotates the spindle and position detection in the same direction.

1: Rotates the spindle and position detection in the reverse direction.
