FANUC AC SPINDLE MOTOR a series

2. FUNCTION EXPLANATION

B–65160E/02

Adjust the orientation stop position shift parameter by following the

procedure below.

(1) Specify parameters as follows:

Bit 7 of parameter No. 4016 = 0

Parameter No. 4031 = 0

(When external signals are used for setting, set the SHA11 to

SHA00 DI signals to 0.)

Parameter No. 4077 = 0

(2) To display the position coder counter under position control, set the

following on the spindle check board:

d–01 = 114

d–02 = 0

d–03 = 0

d–04 = 0

(3) Enter an orientation command (ORCMA) to stop orientation.

(4) Once orientation stops, check that 04096 or an integer multiple of

4096 (0, 4096, 8192, ...) is displayed.

(5) Release the orientation command to deactivate the motor.

(6) Manually position the spindle to the position where you want the

spindle to stop. Then, read the displayed value.

(7) Obtain the difference between the value read in (6) and the value

obtained in (4). Specify the obtained difference as the orientation stop

position shift parameter.

Setting = Value read in (6) – value read in (4)

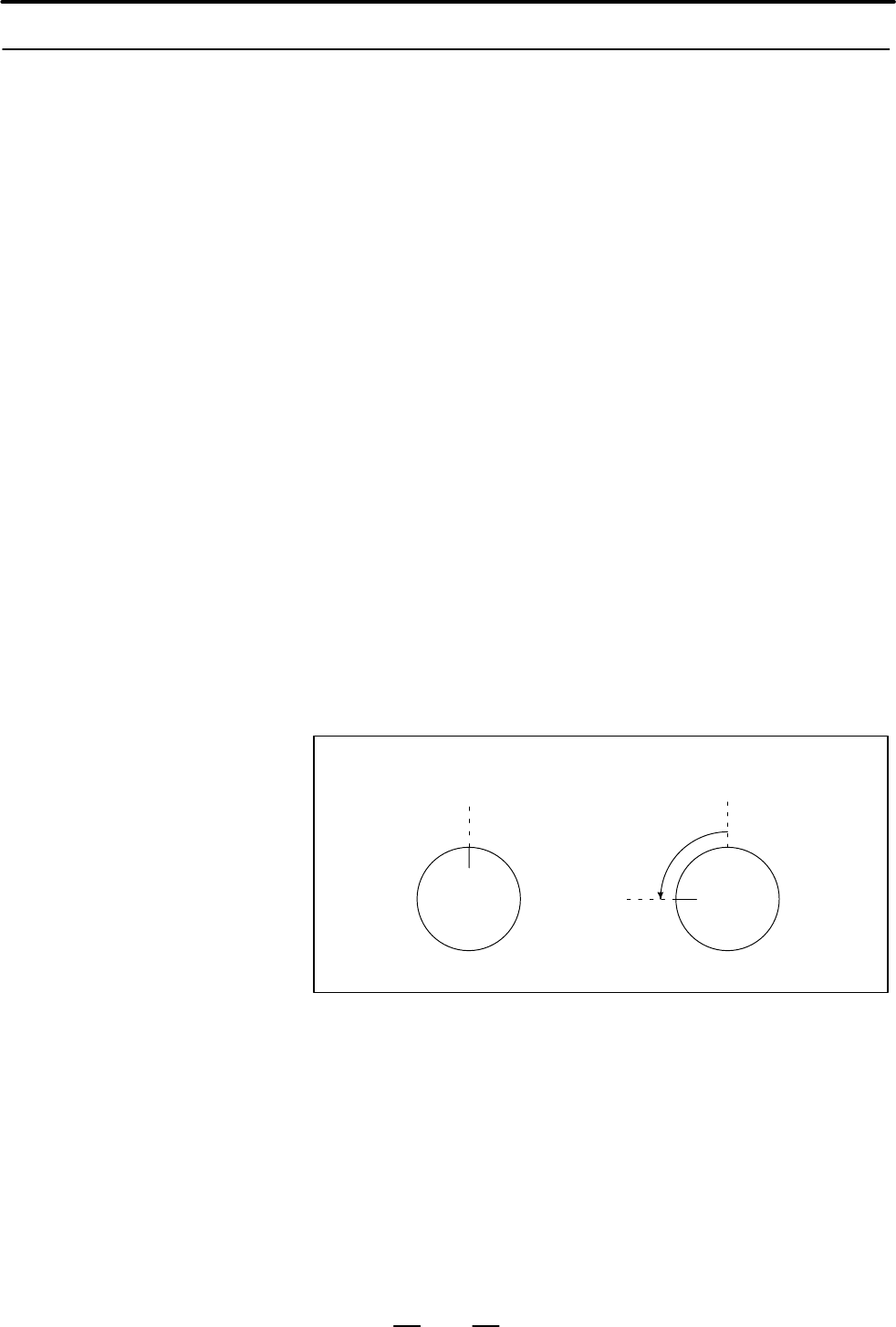

Example:

Value displayed when orientation

is stopped = 04096

Value displayed when the spindle

is positioned manually after

deactivating the motor = 05120

Value to be specified in the parameter = 5120 – 4096 = 1024

2.1.6

Adjusting the

Orientation Stop

Position Shift

Parameter
