AC Spindle Motor Alpha Series Parameter manual Page 39

Parameter manual
FANUC AC SPINDLE MOTOR a series
1. ADJUSTMENT
B–65160E/02
30

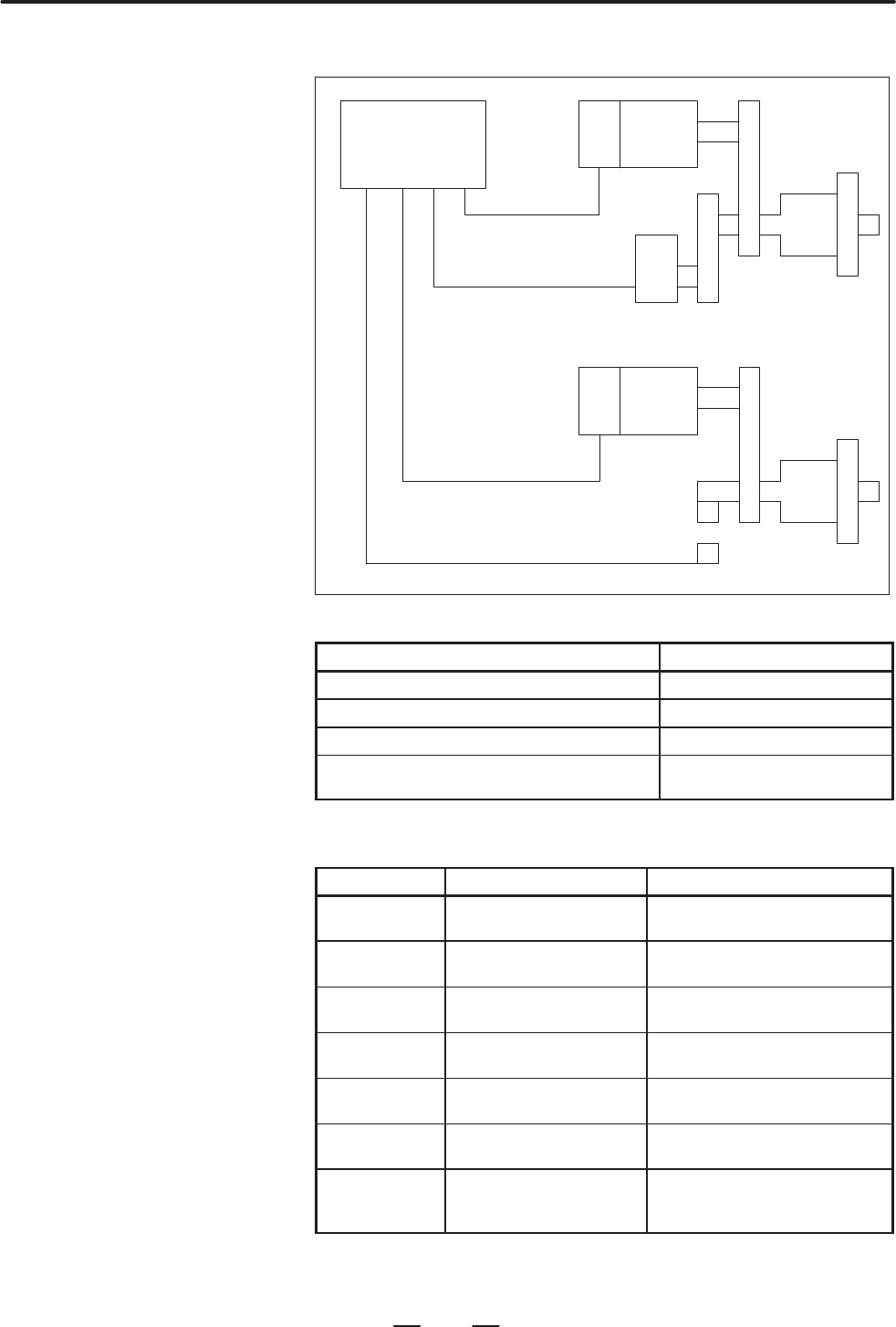

Example system configuration:
Spindle
amplifier
TYPE 3
JY2
Motor
JY6 JY4
Motor
Main
spindle
Sub
spindle
JY7
M sensor
Position coder
MZ sensor
Reference switch (proximity switch)
1. Connect the feedback signal cables.
Detector Connector
M sensor for main spindle side (motor) JY2
Position coder for main spindle side (spindle) JY4
MZ sensor for sub spindle side (motor) JY6
Reference switch signal for sub spindle side
(spindle)
JY7
2. Set the detector–related parameters. Set (a) above (for the main
spindle side) before attempting the setting below.
Parameter Setting Description
4179 #1 1 Uses a MZ sensor
(for the sub spindle side).
4179 #7, 6, 5, 4 Depends on the detector. Sets a position coder signal
(for the sub spindle side).
4180 #4 Depends on the detector. Sets the type of MZ sensor (for
the sub spindle side).
4187 #2, 1, 0 Depends on the detector. Sets a speed detector
(for the sub spindle side).
4177 #2 1 Uses a position coder signal
(for the sub spindle side).
4180 #2 1 Uses a external one rotation
signal (for the sub spindle side).
4180 #3 1 Sets the reverse/unreverse for
a external one rotation signal
(for the sub spindle side).
(4) Setting procedure when using the a sensor CS contouring control
function
