AC Spindle Motor Alpha Series Parameter manual Page 85

Parameter manual

Page of 424

/ 424

FANUC AC SPINDLE MOTOR a series

2. FUNCTION EXPLANATION

B–65160E/02

(1) Calculating the orientation time

In the following explanation, the time, from the input of an

orientation command until orientation stops, is divided into five

periods.

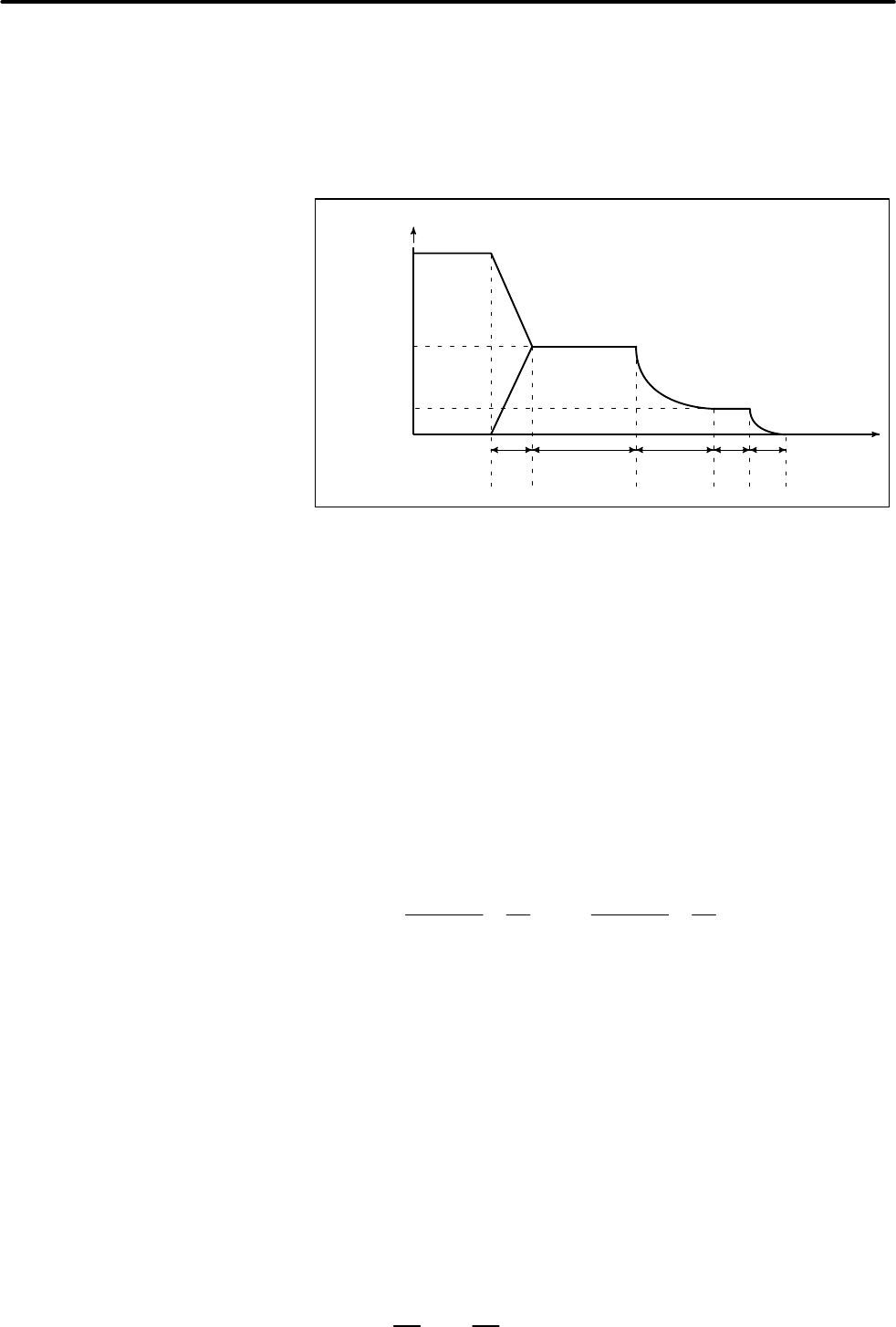

In the following figure, A indicates that the motor in the stop state

starts rotating and is accelerated to the orientation speed. B indicates

that the already rotating motor is decelerated to the orientation speed.

Nori

Nms

Motor

speed

Time

: Time required to achieve orientation speed Nori [sec]

: Time from the detection of a one–rotation signal (0 to 1

: rotation) after Nori is achieved, until deceleration starts (1 –

: Rori rotation) [sec]

: Time from the start of deceleration until speed Nms is

: achieved [sec]

: Time from reaching Nms until the LS signal is detected [sec]

: Time from detection of the LS signal until orientation is

: completed [sec]

(a) t

is measured on the actual machine.

Orientation speed Nori [min

–1

] is calculated from position gain

PG [sec

–1

] and the motor speed limit ratio for orientation Rori.

Nori + PG 60 Rori

(b) t

is the time required to rotate (1 – Rori) to (2 – Rori) turns at

orientation speed Nori [min

–1

(1 * Rori) 60 Nori x t

x (2 * Rori) 60 Nori

PG Rori

x t

PG Rori

will be calculated later, together with t
