B–65160E/02

2. FUNCTION EXPLANATION

FANUC AC SPINDLE MOTOR a series

The time required for orientation differs between the first orientation

(before the position coder one–rotation signal has first been detected) and

the second and subsequent orientations (once the one–rotation signal has

been detected).

(1) Before the one–rotation signal has first been detected (first

orientation)

The time, from the input of an orientation command until orientation

stops, is divided into four periods.

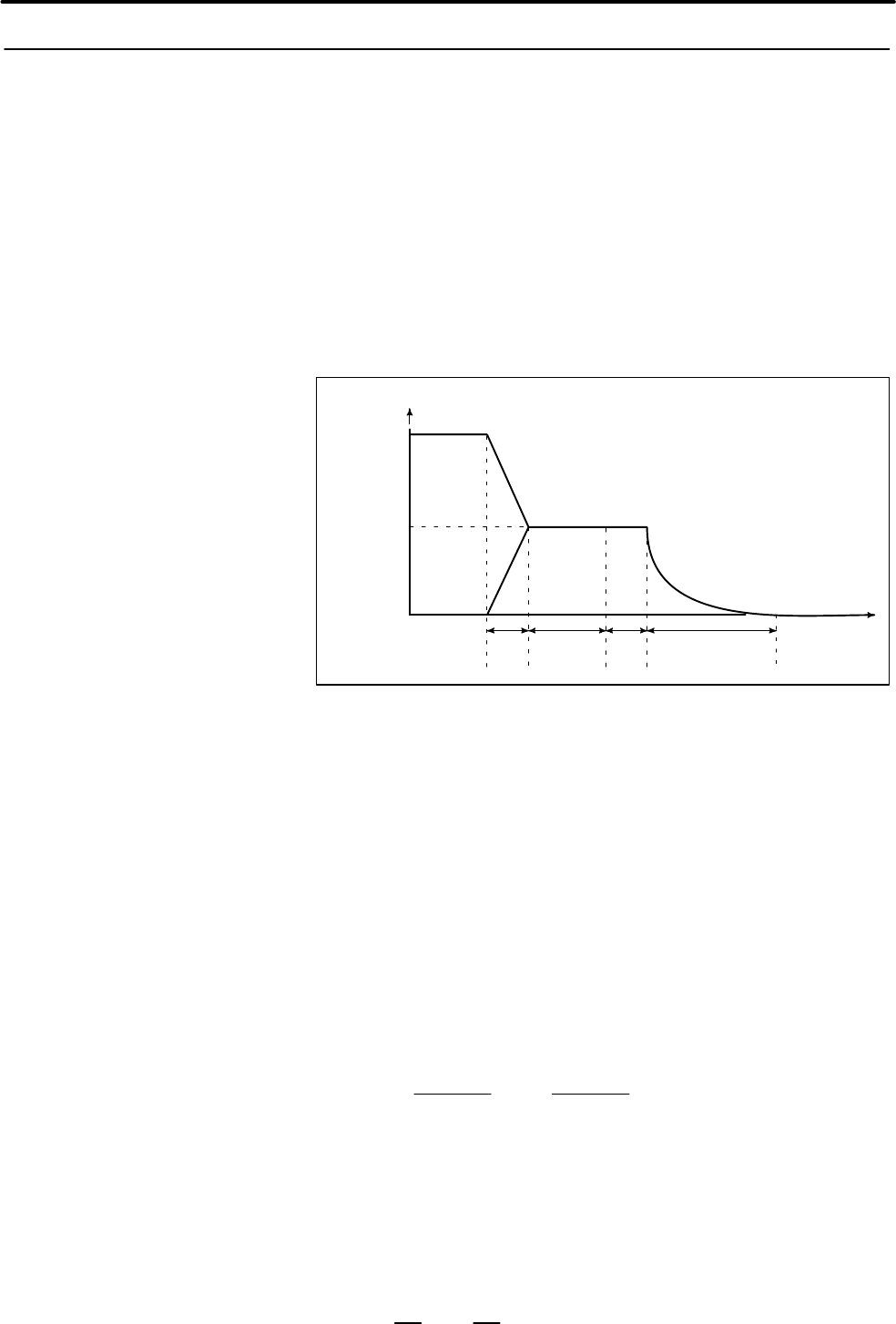

In the following figure, A indicates that the motor in the stop state

starts rotating and is accelerated to the orientation speed. B indicates

that the already rotating motor is decelerated to the orientation speed.

Nori

Motor speed

Time

: Time required to achieve orientation speed Nori [sec]

: Time from the detection of a one–rotation signal (0 to 1

rotation) after Nori is achieved, until the number of

pulses output before the next one–rotation signal has been

checked [sec]

: Time from the completion of the checking of the number of

pulses until deceleration starts [sec]

: Time from the start of deceleration until orientation is

completed [sec]

(a) Normally, t

is measured on the actual machine.

Orientation speed Nori [min

–1

] is calculated from position gain

PG [sec

–1

] and the motor speed limit ratio for orientation Rori.

Nori + PG 60 Rori

(b) t

is the time required for the motor to rotate one to two turns at

orientation speed Nori [min

–1

1 60 Nori x t

x 2 60 Nori

PG Rori

x t

PG Rori

2.1.7

Calculating the

Orientation Time
