AC Spindle Motor Alpha Series Parameter manual Page 38

Parameter manual

Page of 424

/ 424

B–65160E/02

1. ADJUSTMENT

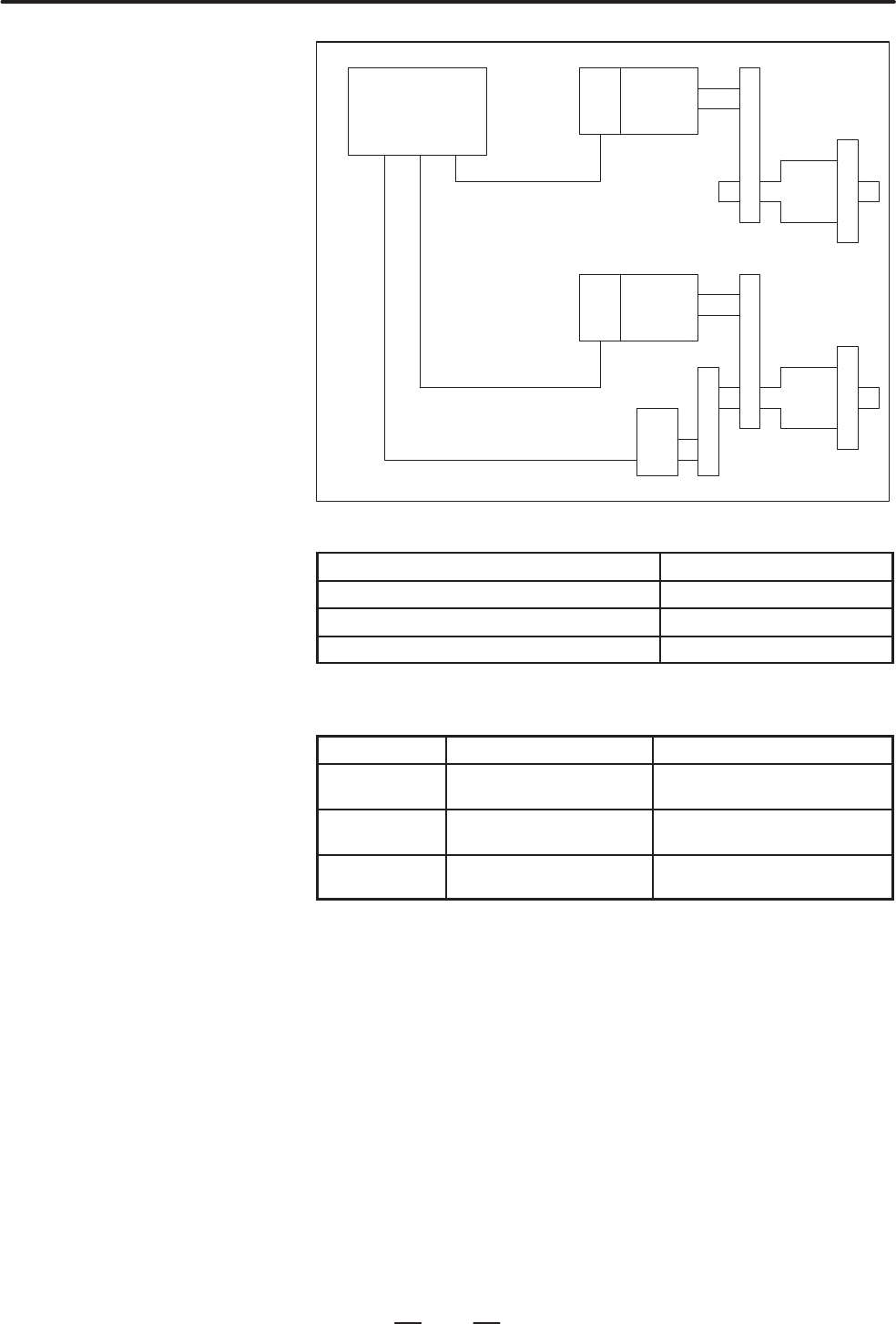

FANUC AC SPINDLE MOTOR a series

Spindle

amplifier

TYPE 3

JY2

Motor

JY8 JY6

Motor

MZ sensor

Main

spindle

Sub

spindle

M sensor

Position coder

1. Connect the feedback signal cables.

Detector Connector

Built–in sensor on main spindle side (motor) JY2

Pulse generator on subspindle side (motor) JY6

Position coder on subspindle side (spindle) JY8

2. Set the detector–related parameters. Set (b) above (for the main

spindle side) before attempting the setting below.

Parameter Setting Description

4187 #2, 1, 0 Depends on the detector. Sets a speed detector

(for sub spindle side).

4179 #7, 6, 5, 4 0, 0, 0, 0 Sets a position coder signal

(for sub spindle side).

4177 #2 1 Uses a position coder signal

(for sub spindle side).

(j) When spindle switching control is performed, a M sensor and

position coder are used on the main spindle side, and a motor’s

MZ sensor in a motor and a reference switch are used on the sub

spindle side.
