Open CNC Basic Operation Package 2 Operators manual Page 100

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 80 -

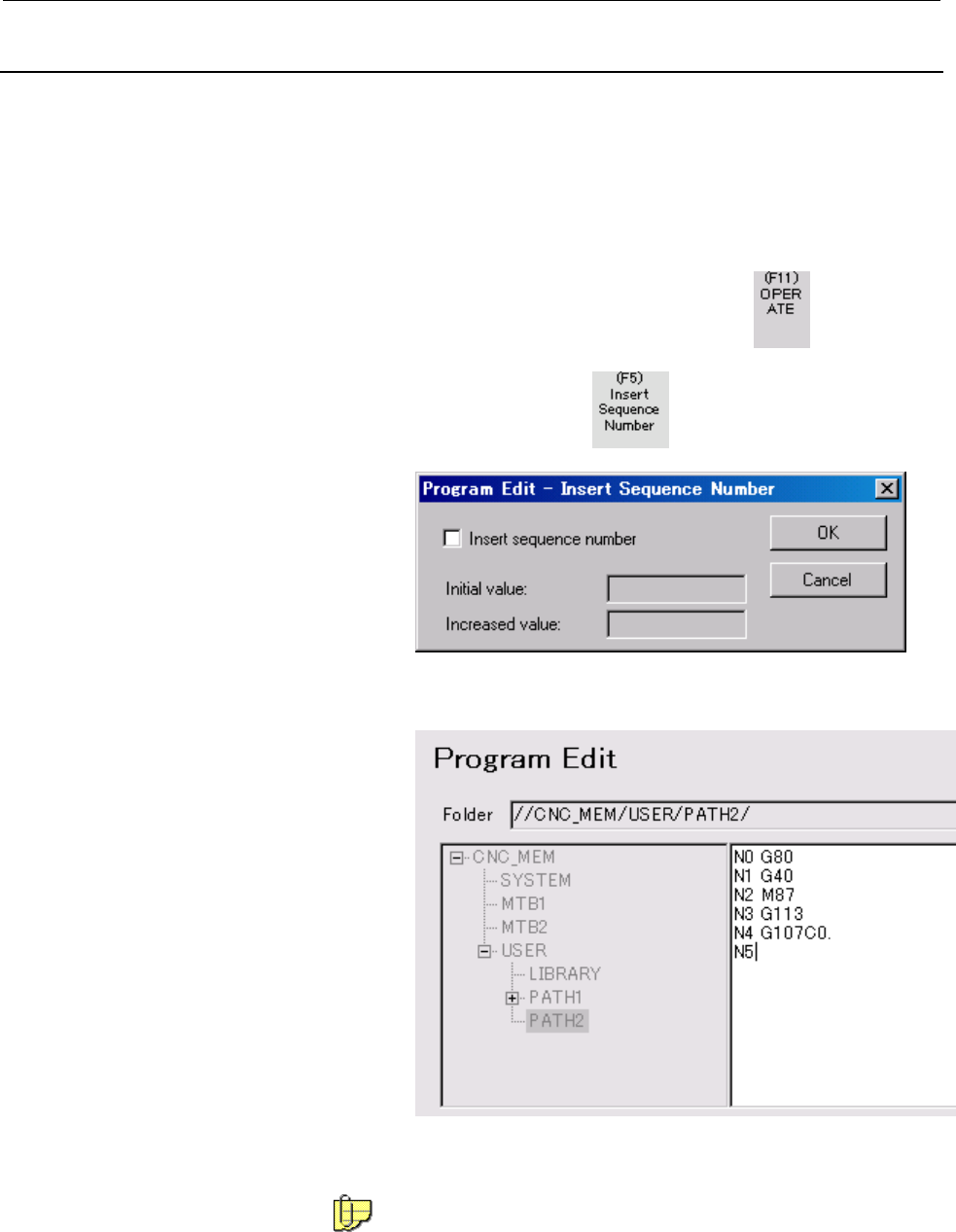

2.3.4.4 Inserting sequence numbers into an NC program
In the NC program being edited, sequence numbers can be
automatically inserted for newly created lines.
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.4,
"Editing an NC Program".
2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [Program Edit -
Insert Sequence Number] screen.
4 Check the [Insert sequence number] check box then set an initial
value and increment. Click the <OK> button.
When you perform a new line operation, a sequence number is
automatically inserted.
Depending on settings, sequence numbers can be automatically
inserted. For the setting of settings, see Subsection 2.4.1,
"Setting of Settings".
