B-63924EN/01 2.STANDARD OPERATION
- 161 -
2.5.4.5 Deleting various types of data files
Various types of data files can be deleted.

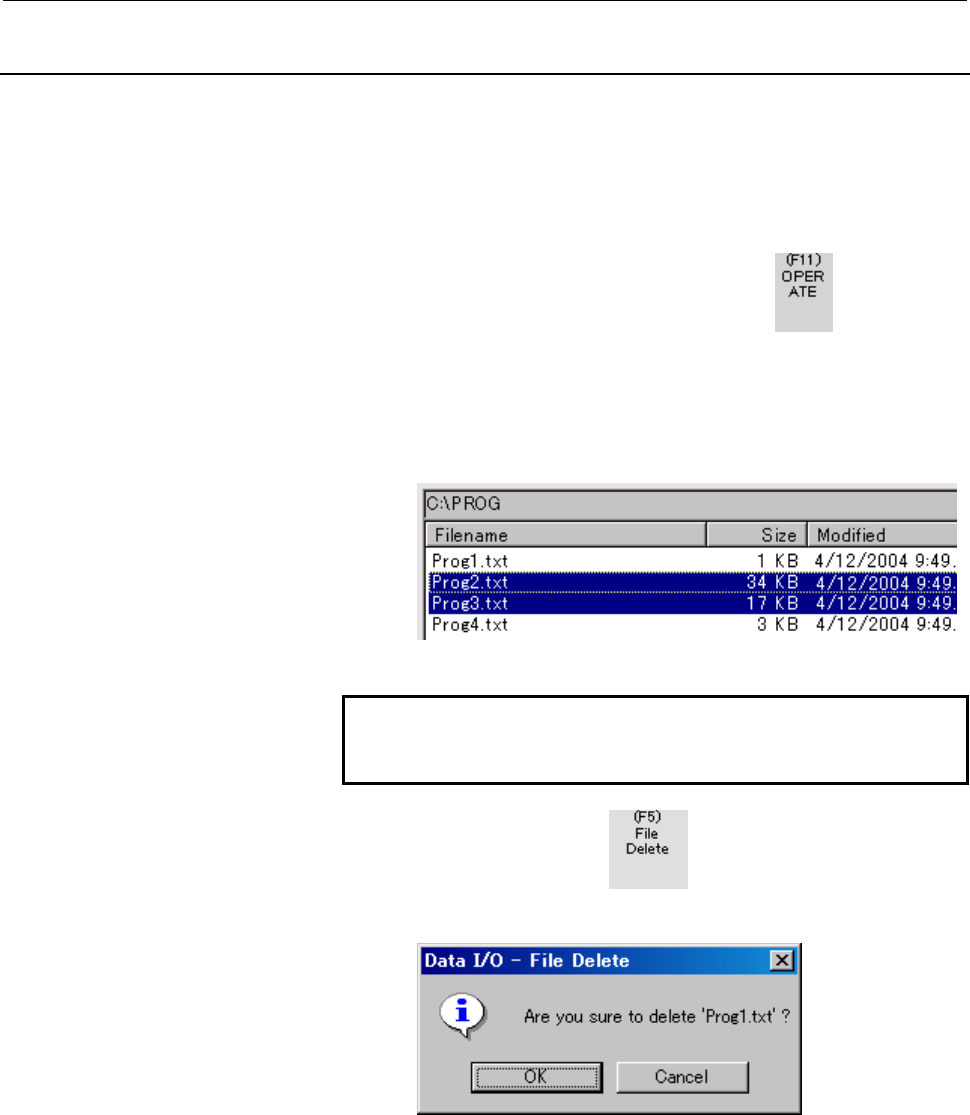

Procedure
1 If the [Data I/O] screen is currently not displayed, display the
[Data I/O] screen as described in Subsection 2.5.4,
"Inputting/Outputting Data".
2 Press the display/operation switching key
to display the
operation keys.
3 Select a folder to be listed, as necessary.
For details, see Subsection 2.5.4.1, "Setting parameters for
input/output".
4 Select a file to be deleted on the list.
Multiple files can be selected as indicated below.
NOTE
To update the list of data files, press the [Refresh]
operation key.
5 Press the operation key
to display the [Data I/O - File
Delete] screen.
