Open CNC Basic Operation Package 2 Operators manual Page 85

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 65 -
2.3.3.8 Setting the attribute of an NC program
The attribute of an NC program on the CNC can be set.
NOTE
To set the attribute of an NC program, set the
following status:
• Operation
- Stopped
• When the attribute for disabling display is set
- Program protection released
• When the attribute for encoding is set
- Encoding released
Procedure

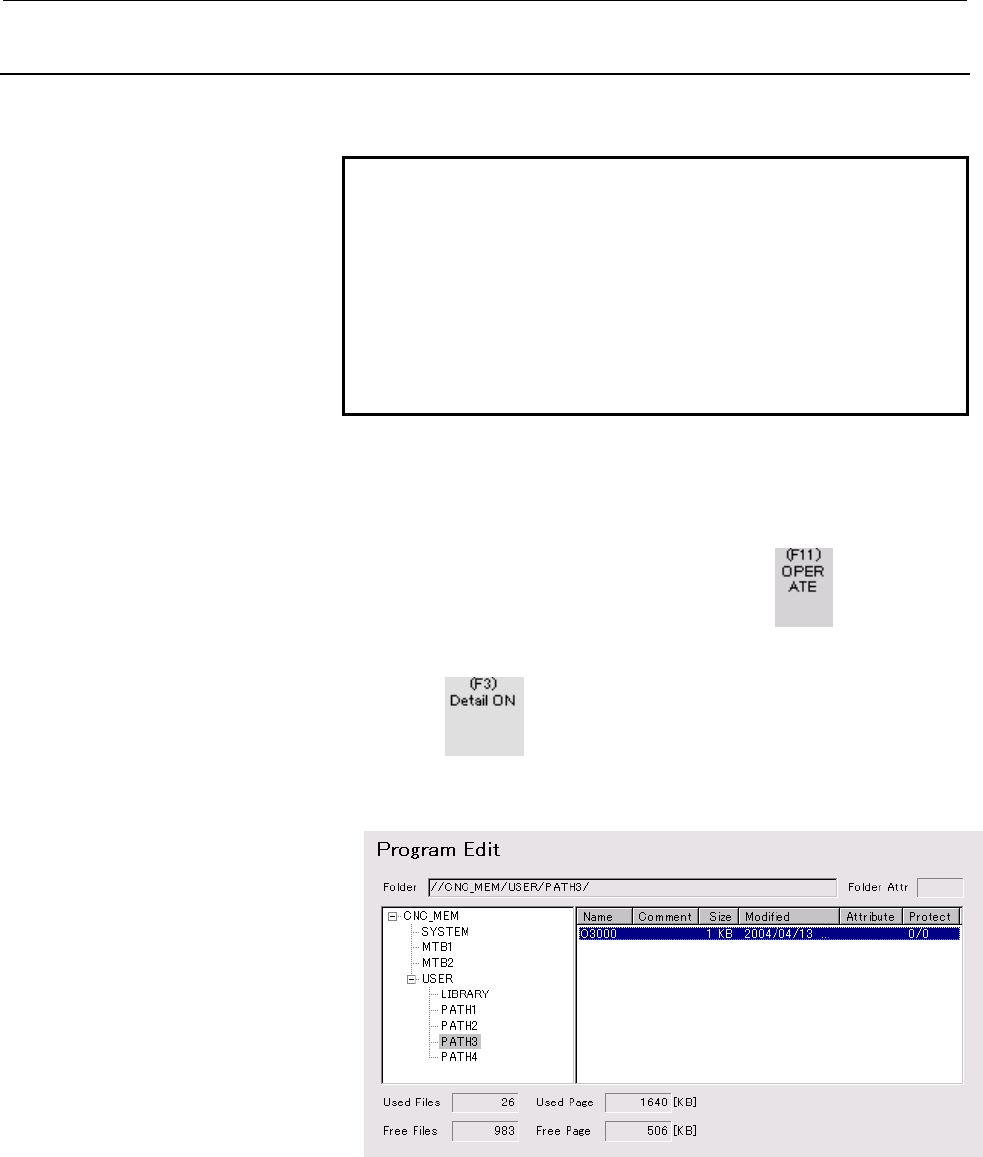

1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.3,
"Displaying the NC Program Directory".
2 Press the display/operation switching key
to display the
operation keys.
3 If the screen is currently displayed in the overall display mode,
press
to switch to the detail display mode. For the
detail display mode, see Subsection 2.3.3.1, "Switching the NC
program directory display".
4 Select an NC program whose attribute is to be set.
Previous page
Next page
