2.STANDARD OPERATION B-63924EN/01
- 168 -
c) Select a bit by pressing the operation key or
, or the [
←
] or [
→
] key on the keyboard or MDI
panel.

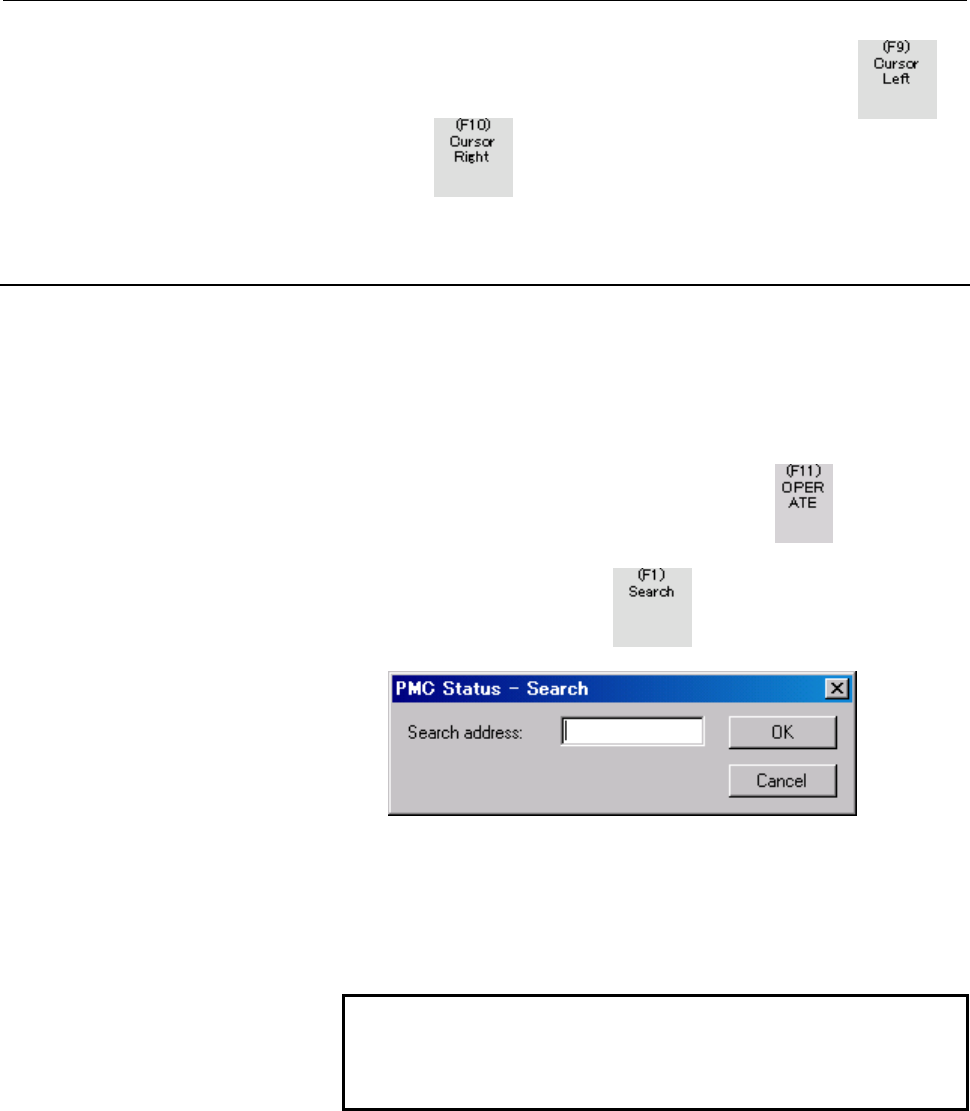

2.5.6.1 Finding a PMC status address
The PMC status at a specified address can be displayed.
Procedure
1 If the [PMC Status] screen is currently not displayed, display the
[PMC Status] screen as described in Subsection 2.5.6,
"Displaying PMC Status".
2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [PMC Status -
Search] screen.
4 Enter a number to be found, then click the <OK> button. The
cursor moves to the PMC status data of the specified number.
To specify a number to be found, enter "address + number" (for
example, G1234). If no address is entered, a number search is
made in the currently displayed address range.
NOTE
If the PMC parameter of a specified number is not
found, the parameter of the greatest number under
the specified number is displayed.
