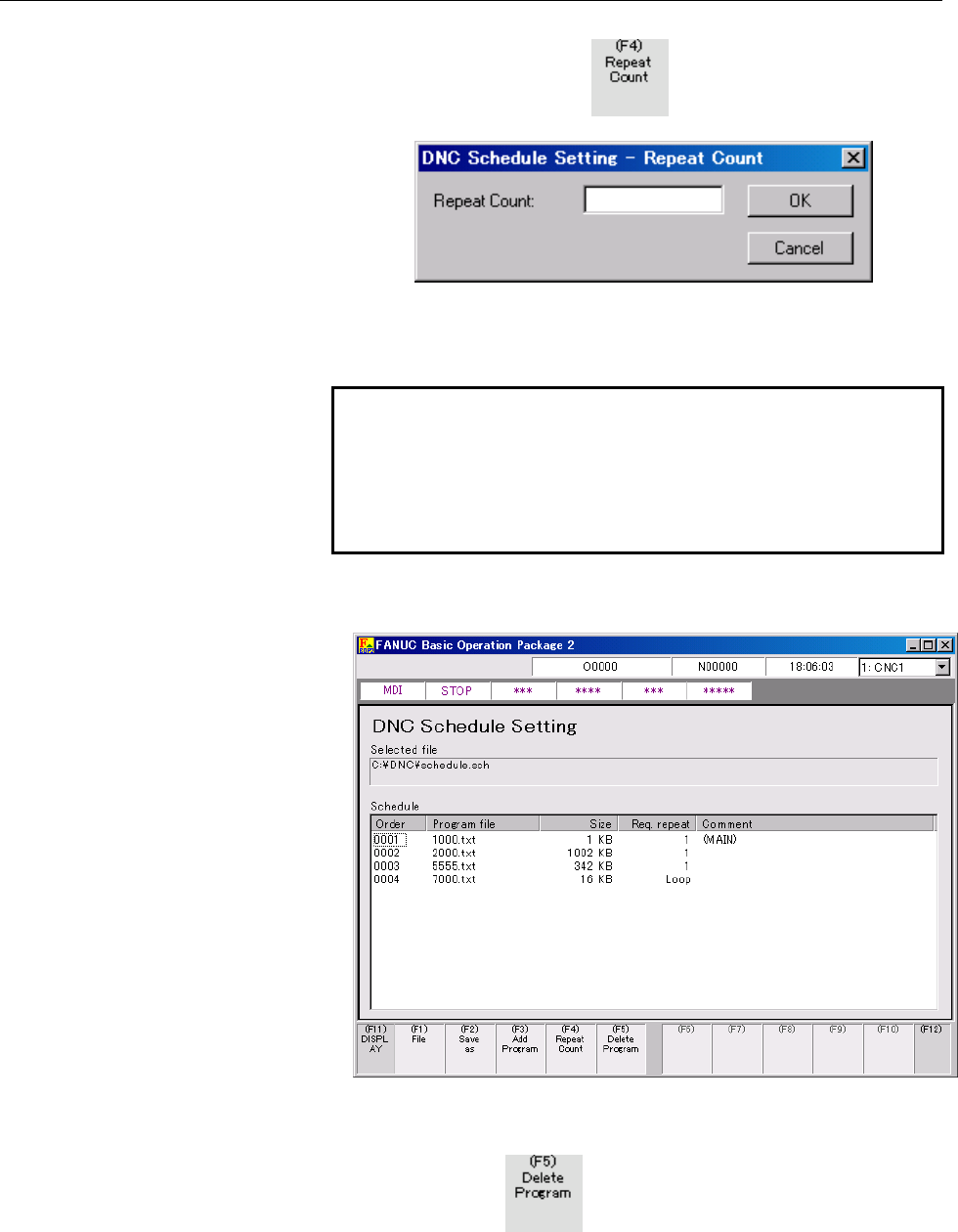

9 Press the operation key to display the [DNC Schedule
Setting - Repeat Count] screen.
10 Enter the number of operation repeats then click the <OK>
button.
NOTE
If 0 is entered in Repeat Count, the NC program is
not executed.
If a negative value is entered in Repeat Count, the
NC program is executed endlessly. ([Req. repeat]
in the program list indicates "Loop".)
11 Repeat steps 5 through 8 to create a schedule file.
12 To delete an unnecessary NC program, if any, display the
corresponding Order value in reverse video then press the
operation key
.
Previous page
Next page
