B-63924EN/01 2.STANDARD OPERATION
- 207 -
2.7.2.3 Setting for each user level
For each user level, the method of starting, screen location and size,
display language, operation key positions, navigation (operation
system) files, and so forth can be set.
Procedure
1 If the [Setup] screen is currently not displayed, display the
[Setup] screen as described in Subsection 2.7.2, "Setting Basic
Operation Package 2".

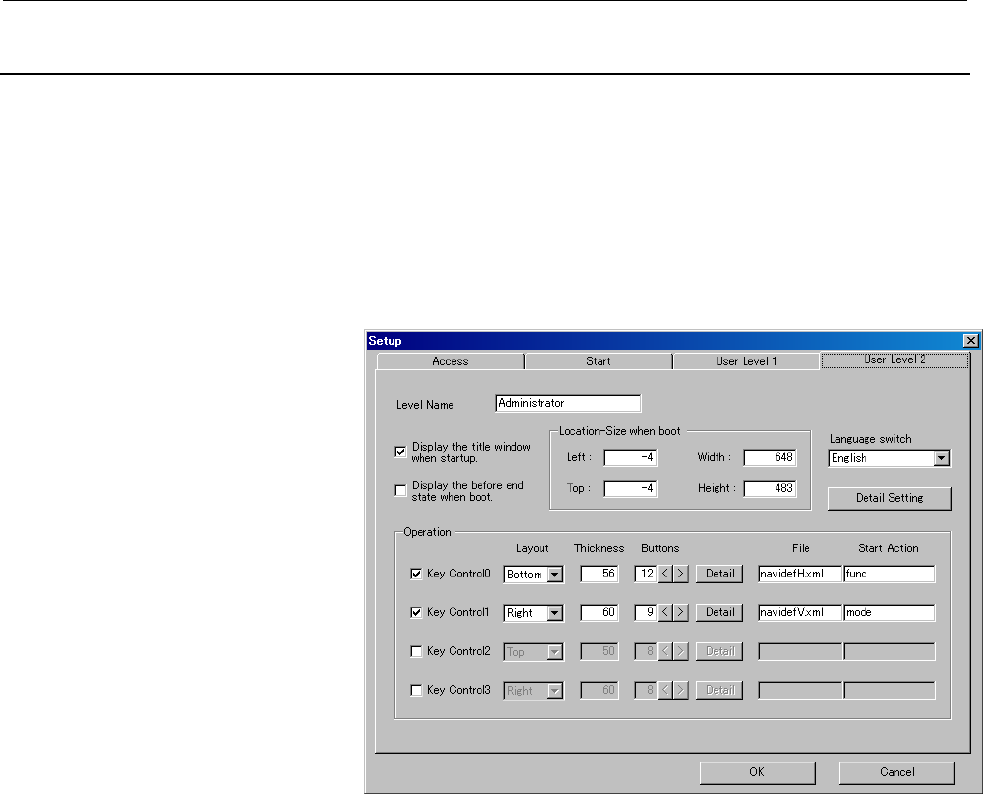

2 Select the [User Level 1] tab or [User Level 2] tab.
• Level name
Name of a setting made here. This name is indicated in the
user level field on the [Start] tab.
• Title window display at start-up time
Set whether to display the title window when Basic
Operation Package 2 is started.
• Start-up with the previous end state
Set which of the [Overall Position] screen and the screen
displayed when Basic Operation Package 2 was terminated
previously is to be displayed when Basic Operation Package
2 is started next time.
• Location and size at start-up time
Set the location and size of the screen. Usually, the
location and size used at the last termination time are
automatically saved. However, the existing settings can be
modified on this screen.
• Language selection
Set a language to be used when Basic Operation Package 2
is started.
