2.3.3.9 Setting the protect level of an NC program
A protect level can be set for an NC program on the CNC.
NOTE
To set a protect level for an NC program, the
8-level protection option is required.
Moreover, set the following status:
• Operation
- Stopped
Procedure

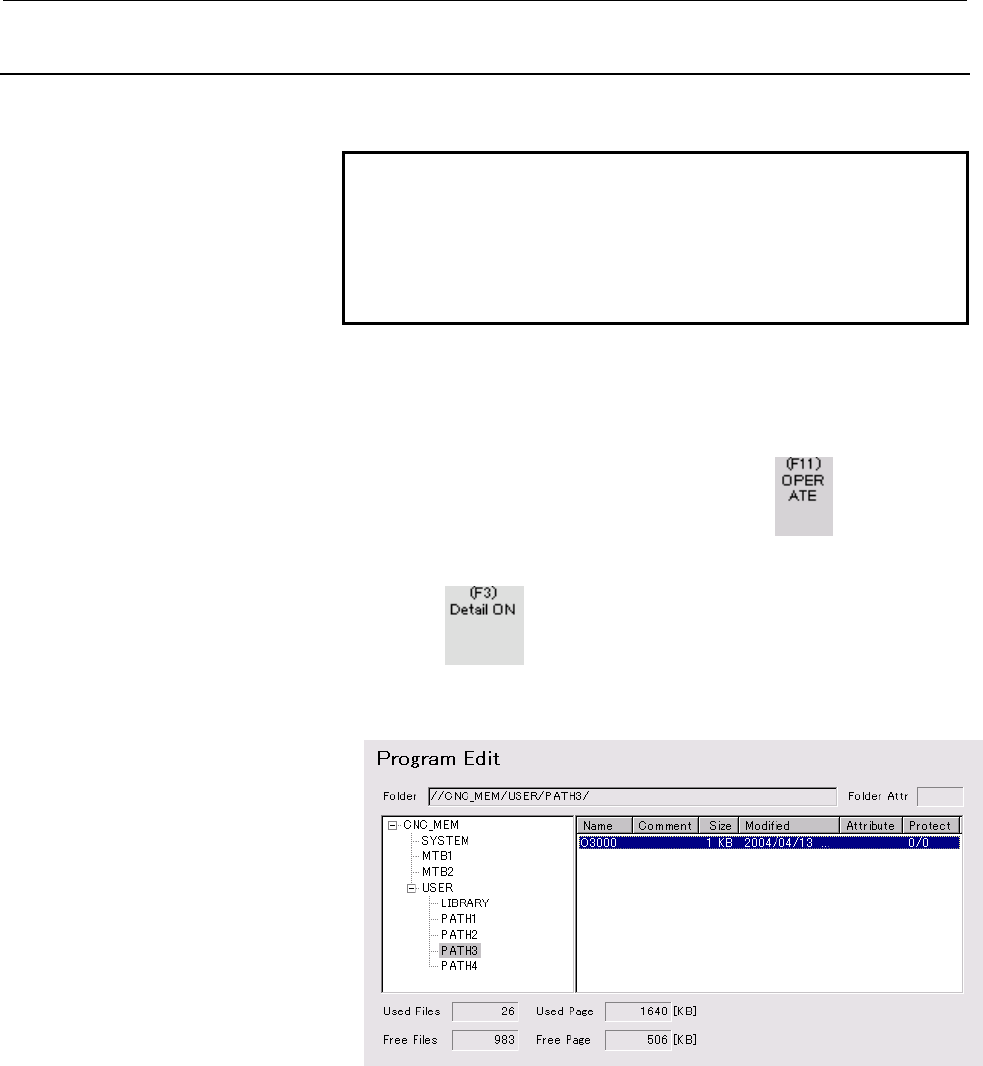

1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.3,
"Displaying the NC Program Directory".
2 Press the display/operation switching key
to display the
operation keys.
3 If the screen is currently displayed in the overall display mode,
press
to switch to the detail display mode. For the
detail display mode, see Subsection 2.3.3.1, "Switching the NC
program directory display".
4 Select an NC program whose protect level is to be changed.
