Open CNC Basic Operation Package 2 Operators manual Page 53

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 33 -

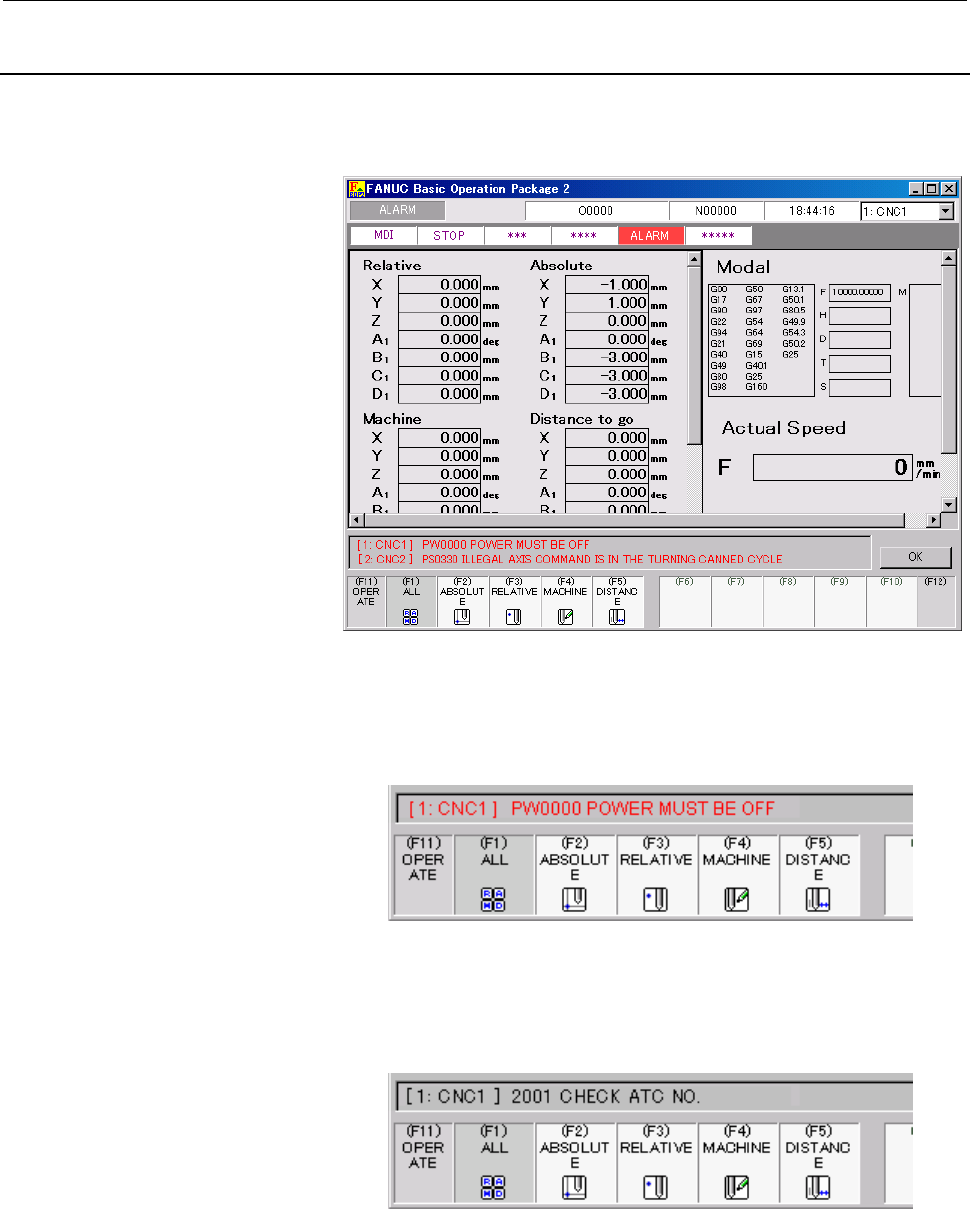

2.1.3 Display of Messages from Connected CNCs
Basic Operation Package 2 displays, on a real-time basis, alarm
messages and operator messages issued from all connected CNCs.
• Display format
An alarm message is displayed in red in the following format:
[ CNC-number: CNC-name ] alarm-number alarm-description
An operator message is displayed in yellow in the following
format:
[ CNC-number: CNC-name ] operator-message-number message
The same CNC number and CNC name as registered on the
[Setup] screen are displayed.
For the meaning of each message displayed, refer to the
operator's manual of each CNC or the relevant operator's manual
issued by each machine tool builder.
