2.3.6.4 Creating a schedule file
A schedule file for setting the file names of NC programs to be used
for DNC schedule operation, the order of operation, and the number of
repeats can be created.
Procedure
1 If the [DNC Schedule Setting] screen is currently not displayed,
display the [DNC Schedule Setting] screen as described in
Subsection 2.3.6.3, "Setting a schedule operation".
2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [DNC Schedule
Setting - File] screen.

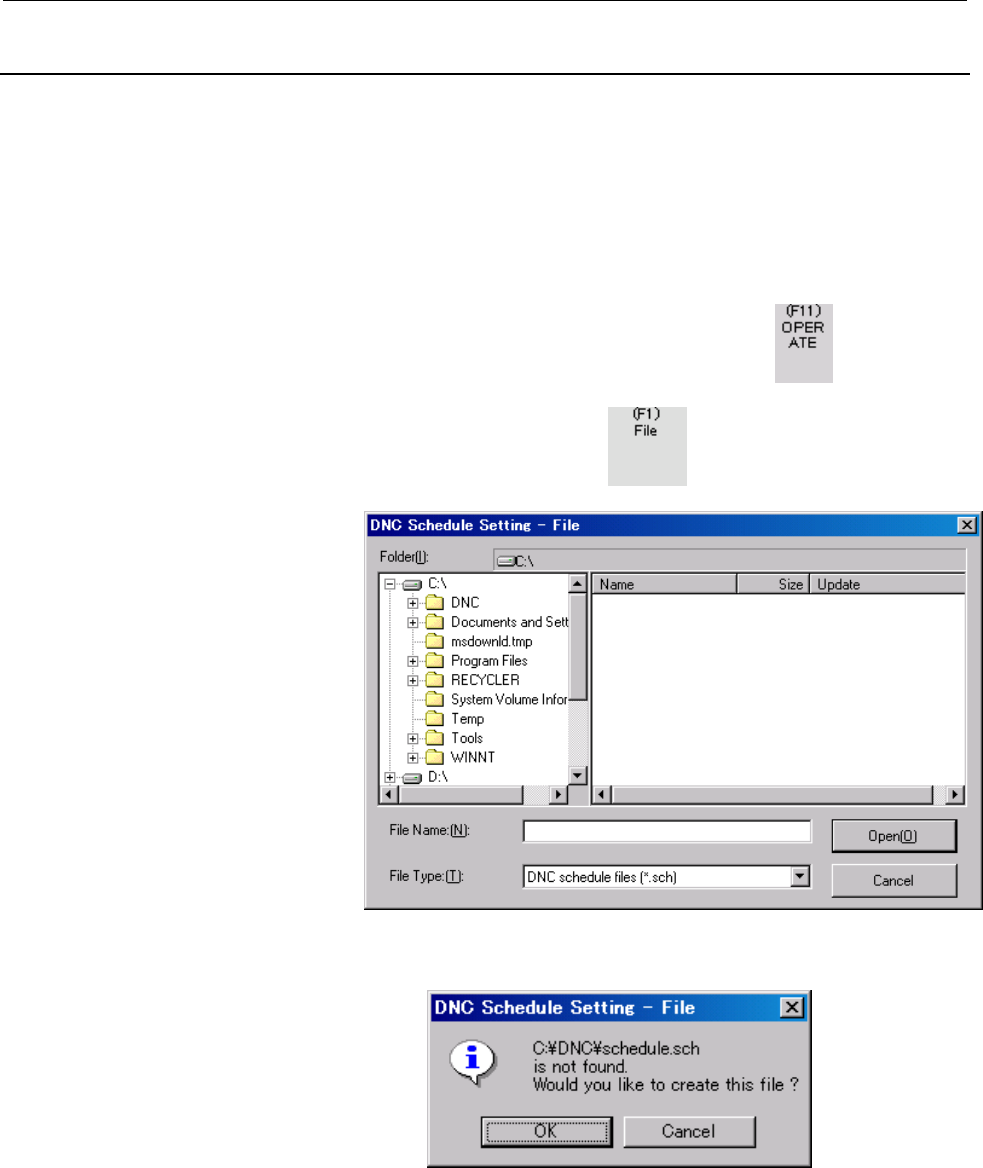

4 Enter a desired new schedule file name in "File Name:(N):" then
press the <Open(O)> button.
↑The screen above is displayed.
5 Click the <OK> button to create a schedule file.
