Open CNC Basic Operation Package 2 Operators manual Page 98

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 78 -
2.3.4.2 Inserting an NC program from a disk
The NC program stored in a file on the hard disk (or another external
memory unit) can be inserted into the NC program being edited.
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.4,
"Editing an NC Program".
2 Press the display/operation switching key
to display the
operation keys.
3 Move the cursor to a position at which you want to insert an NC
program.

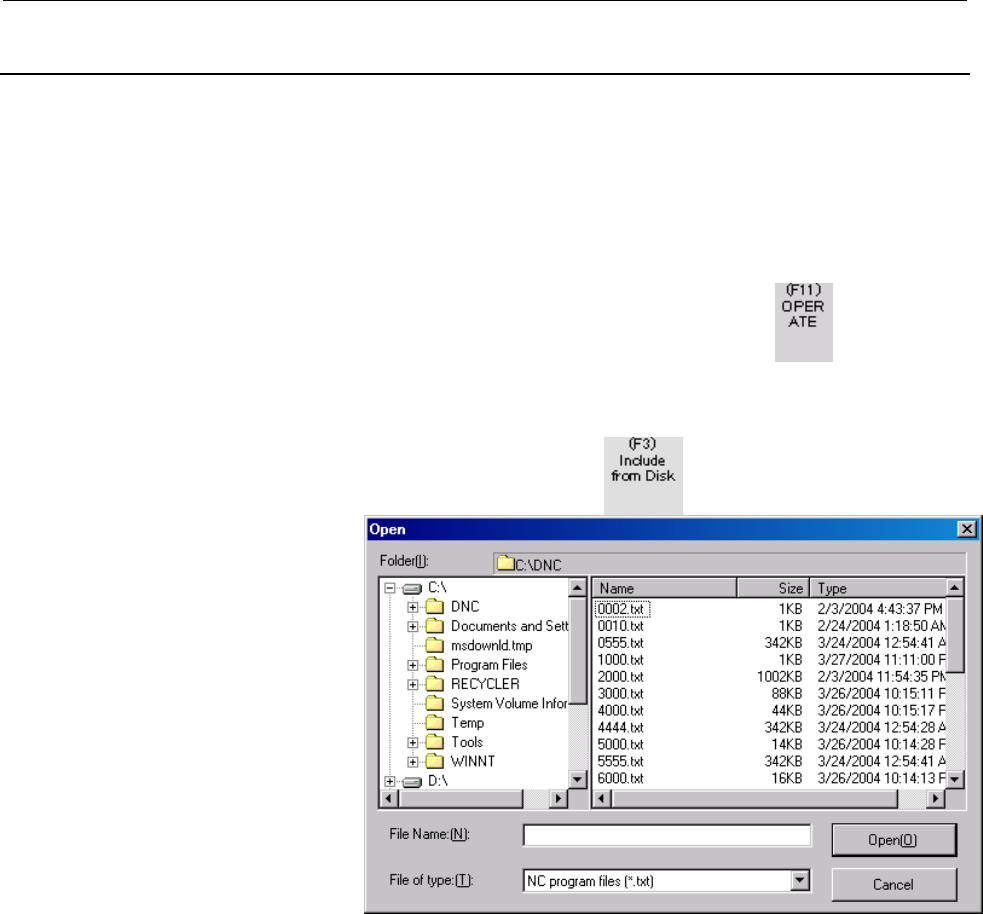

4 Press the operation key
to display the [Open] screen.
5 Select an NC program to be inserted from the hard disk (or
another external memory unit) then click the <OK> button.
The contents of the file are inserted at the cursor position.
