Open CNC Basic Operation Package 2 Operators manual Page 39

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 19 -
2.1.2 Key Controls and Screen Transition
In the standard state, the operation key controls are classified as
indicated below.

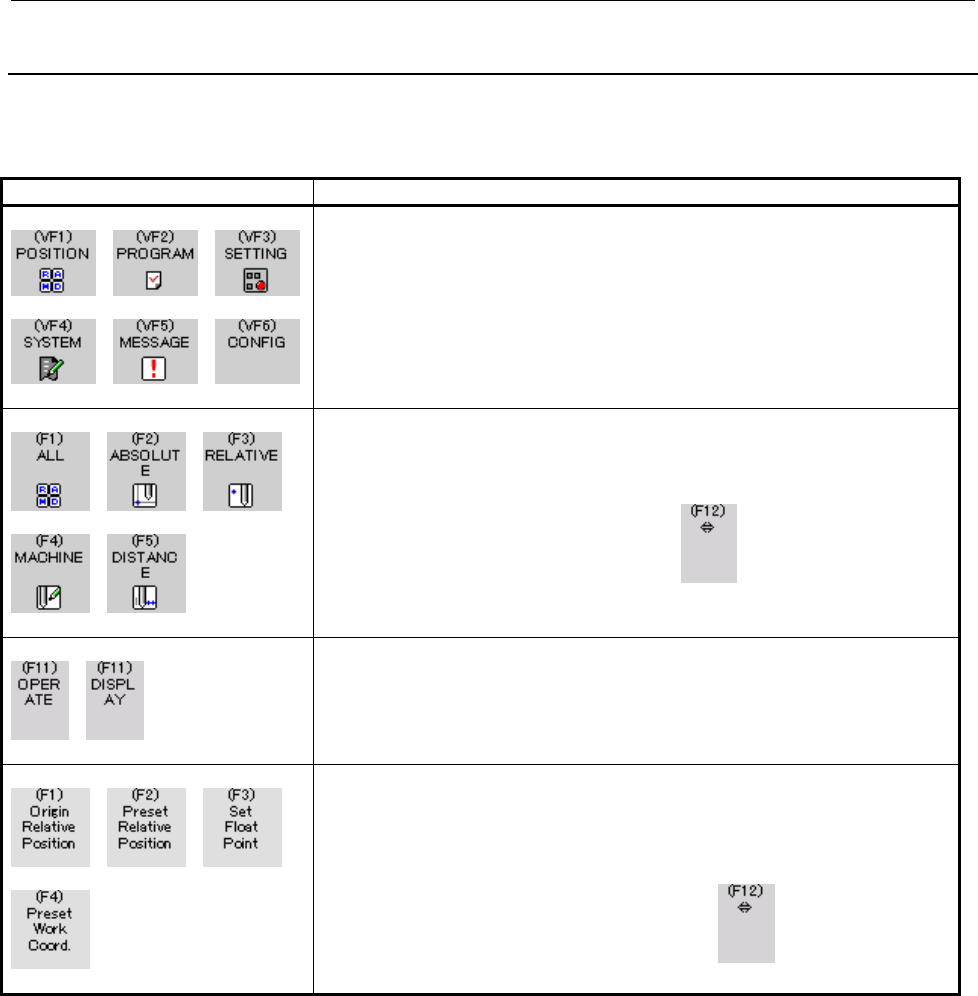

Key control element Description
Function keys
Keys corresponding to CNC function keys. Each key is used to select a
function group for a child screen to be displayed.
Submenu keys
Keys corresponding to the submenus of each function key. Each key is used
to select a child screen to be displayed.
When there are too many submenus to be displayed at a time, the remaining
submenus can be displayed by pressing the
key.
Display/operation switching key
This key is displayed when the currently active child screen allows operations
such as display switching and data input.
Each time you press the key, the submenus or operation keys are displayed.
Operation keys on each child screen
Operation keys are displayed when the display/operation switching key is
pressed to select operation key display instead of submenu key display.
In the example at the left, the operation keys for the [Overall Position] screen
are indicated.
When there are too many operation keys to be displayed at a time, the
remaining keys can be displayed by pressing the
key.
Previous page
Next page
