Open CNC Basic Operation Package 2 Operators manual Page 83

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 63 -

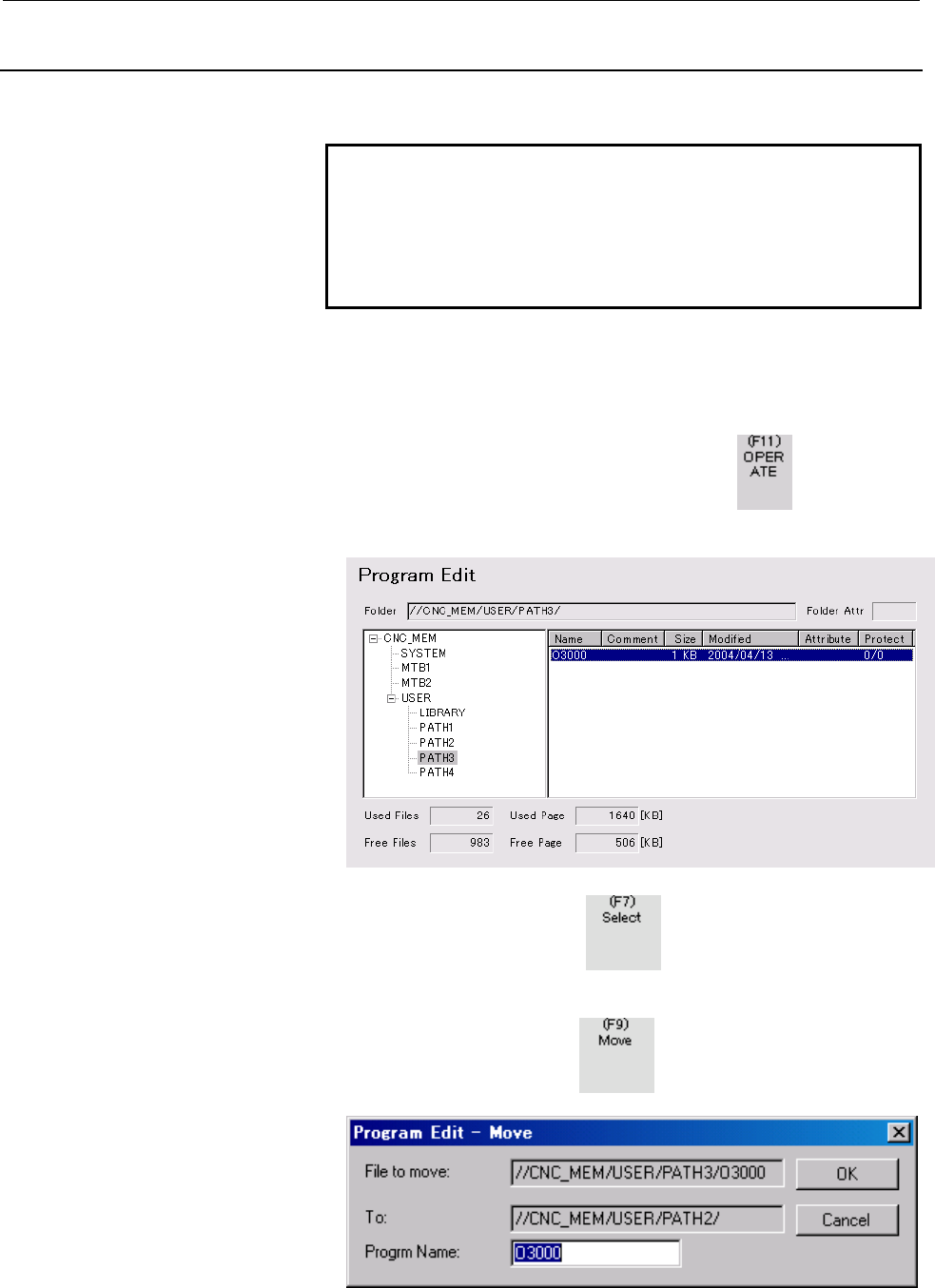

2.3.3.7 Moving an NC program
An NC program on the CNC can be moved to a specified folder.
NOTE
To move an NC program, release the protection of
the NC program.
Moreover, set the following status:
• Operation
- EDIT mode
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.3,
"Displaying the NC Program Directory".
2 Press the display/operation switching key
to display the
operation keys.
3 Select an NC program to be moved.
4 Press the operation key to confirm the specified NC
program as the move source.
5 Select a move destination folder.
6 Press the operation key
to display the [Program Edit -
Move] screen.
