B-63924EN/01 2.STANDARD OPERATION
- 187 -
• Type
Select a PMC data type from the following:
0: BYTE type
1: WORD type
2: DWORD type
3: BIT type
• Data
Set the number of PMC data items in a group table.
2.5.11.3 Finding a group number of PMC data
The group table of a specified number can be displayed on the table
control data screen.
Procedure
1 If the [PMC Data] screen is currently not displayed, display the
[PMC Data] screen as described in Subsection 2.5.11, "Setting
PMC Data".

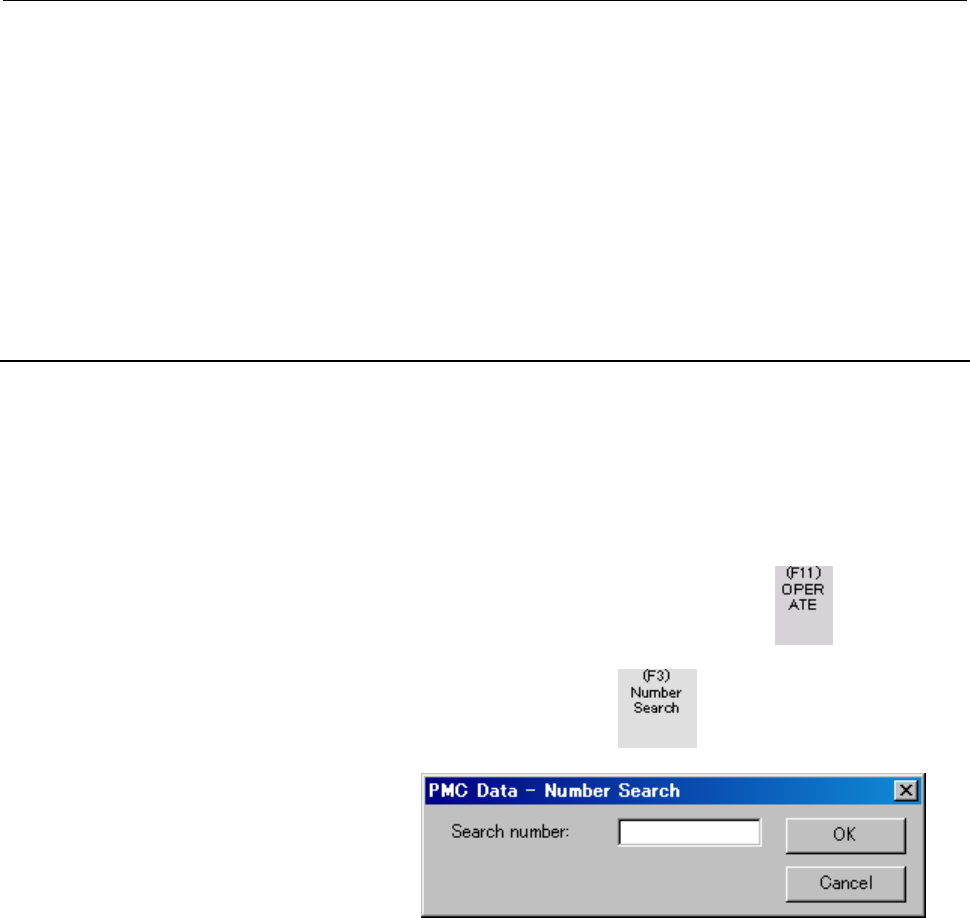

2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [PMC Data -
Number Search] screen.
4 Enter a group number to be found, then click the <OK> button.
The cursor moves to the group table of the specified number.
