3.5.5.23 PMC Alarm screen-specific definitions
The pages tag can contain only one page tag definition. The page tag
can contain only one data_series tag definition.
The data_series tag can contain only location and controlbase tag
definitions. In other words, only control position and display method
definitions are valid; any other items (such as protect attribute, s_no
tag, e_no tag, datatype tag, and data tag) in the data_series tag are
ignored.

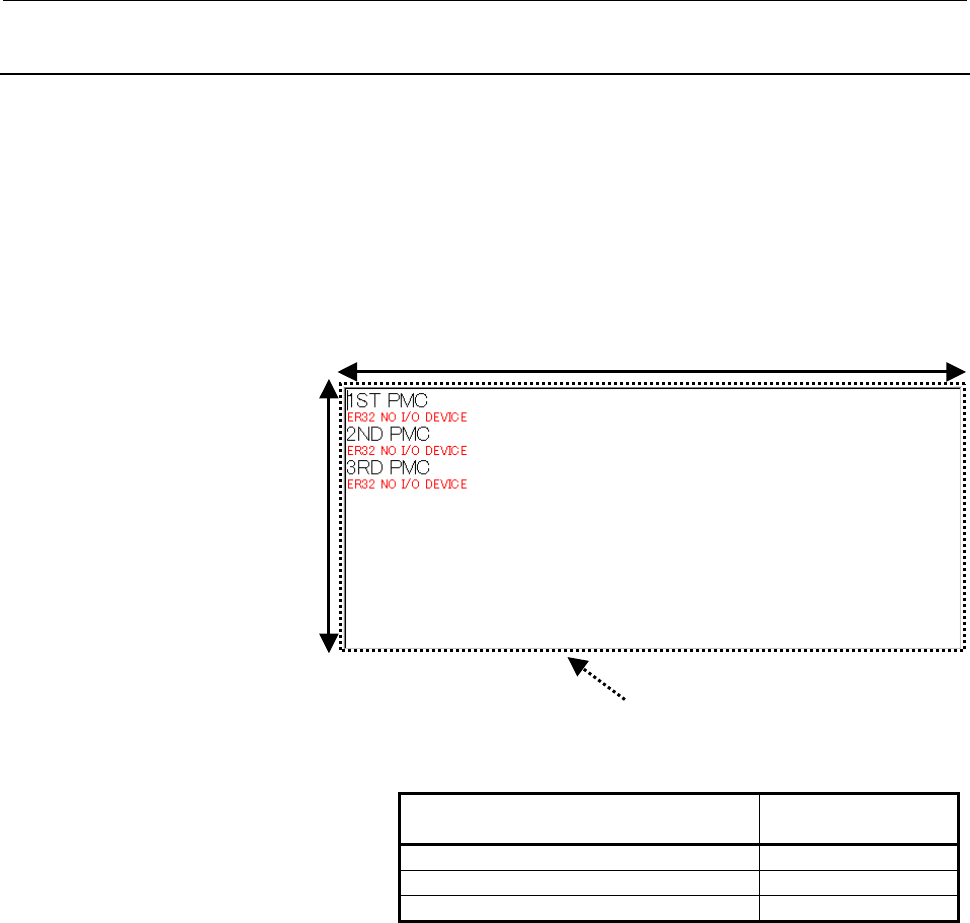

• forecolor in the font tag in the controlbase tag
forecolor type index attribute
number
PMC system display font color 0
PMC alarm number font color 1
PMC alarm message font color 2
Height defined in the size
tag in the controlbase tag
Width defined in the size tag in the controlbase tag
Display based on one data_series tag
Previous page
Next page
