Open CNC Basic Operation Package 2 Operators manual Page 33

Operators manual
B-63924EN/01 1.SETUP
- 13 -
1.5 SETTING THE CNC PARAMETERS
This section describes how to set the minimum required CNC
parameters for operating Basic Operation Package 2 normally.
NOTE
If the CNC parameters are not set, the writing and
display of NC programs and MDI commands
cannot be performed normally.
NOTE
To set the parameters, first establish the following
status:
• Settings
- [Parameter Write] enabled
• Operation
- Emergency stop, or stopped or paused in
MDI mode
For the method of setting of settings, see
Subsection 2.4.1, "Setting of Settings".
Procedure

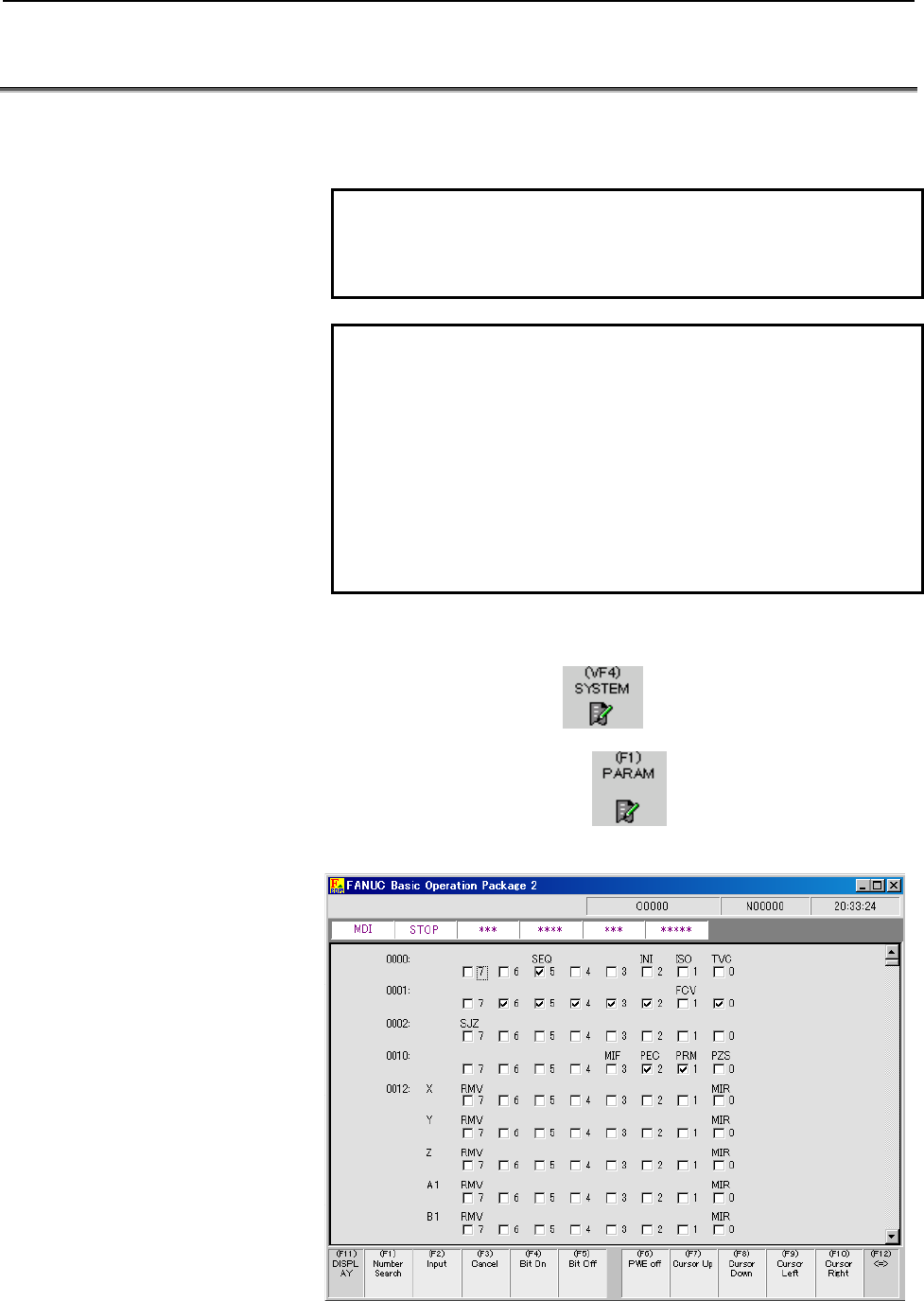

1 Press the function key
.
2 Press the submenu key
to display the [Parameter]
screen.
Previous page
Next page
