Open CNC Basic Operation Package 2 Operators manual Page 64

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 44 -

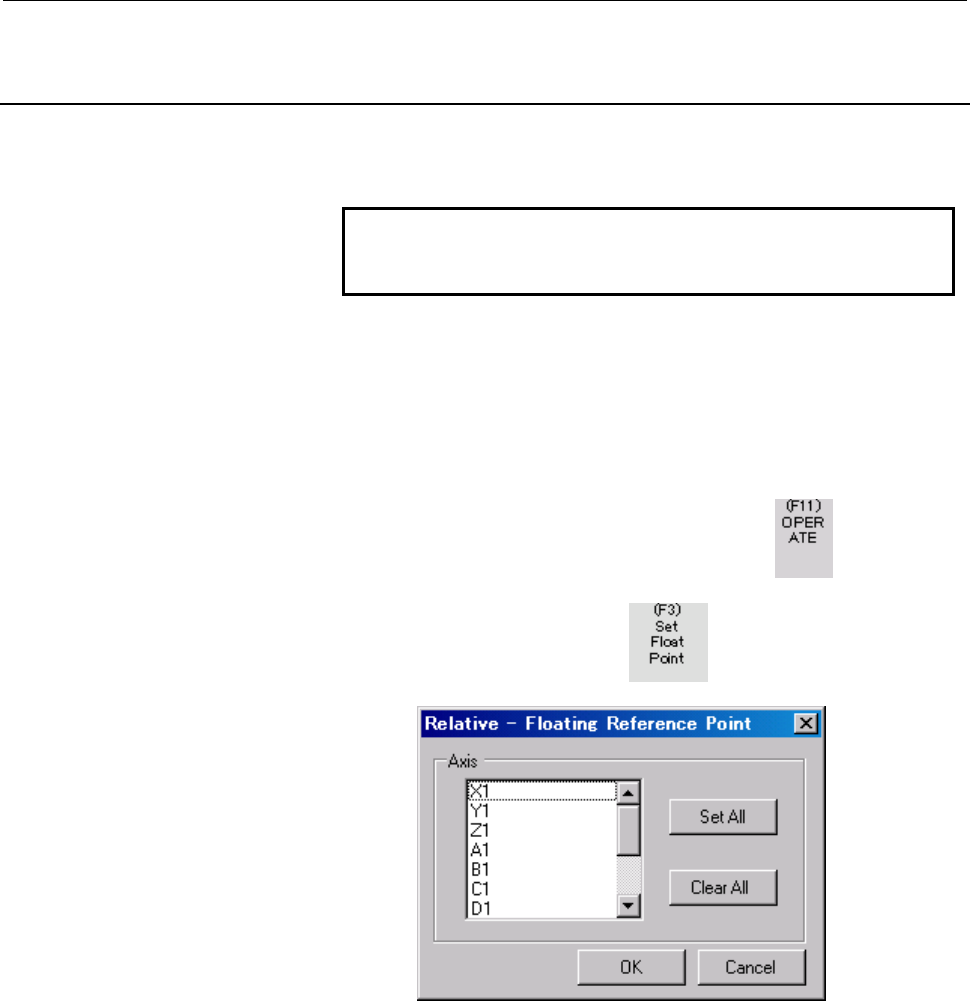

2.2.3.3 Setting the machine position to the floating reference
position
The machine position of the CNC can be set to the floating reference
position.
NOTE
To set the floating reference position, the
corresponding CNC option is required.
Procedure
1 If the [Absolute] screen or [Relative] screen (or [Overall
Position] screen) is currently not displayed, display the
[Absolute] screen or [Relative] screen (or [Overall Position]
screen) as described in Subsection 2.2.2, "Displaying the
Absolute Position", or Subsection 2.2.3, "Displaying the Relative
Position" (or Subsection 2.2.1, "Overall Position Display").
2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [Relative -
Floating Reference Point] screen.
