B-63924EN/01 2.STANDARD OPERATION
- 155 -
2.5.4.2 Displaying a list of various types of data files
A list of various types of data files can be displayed.

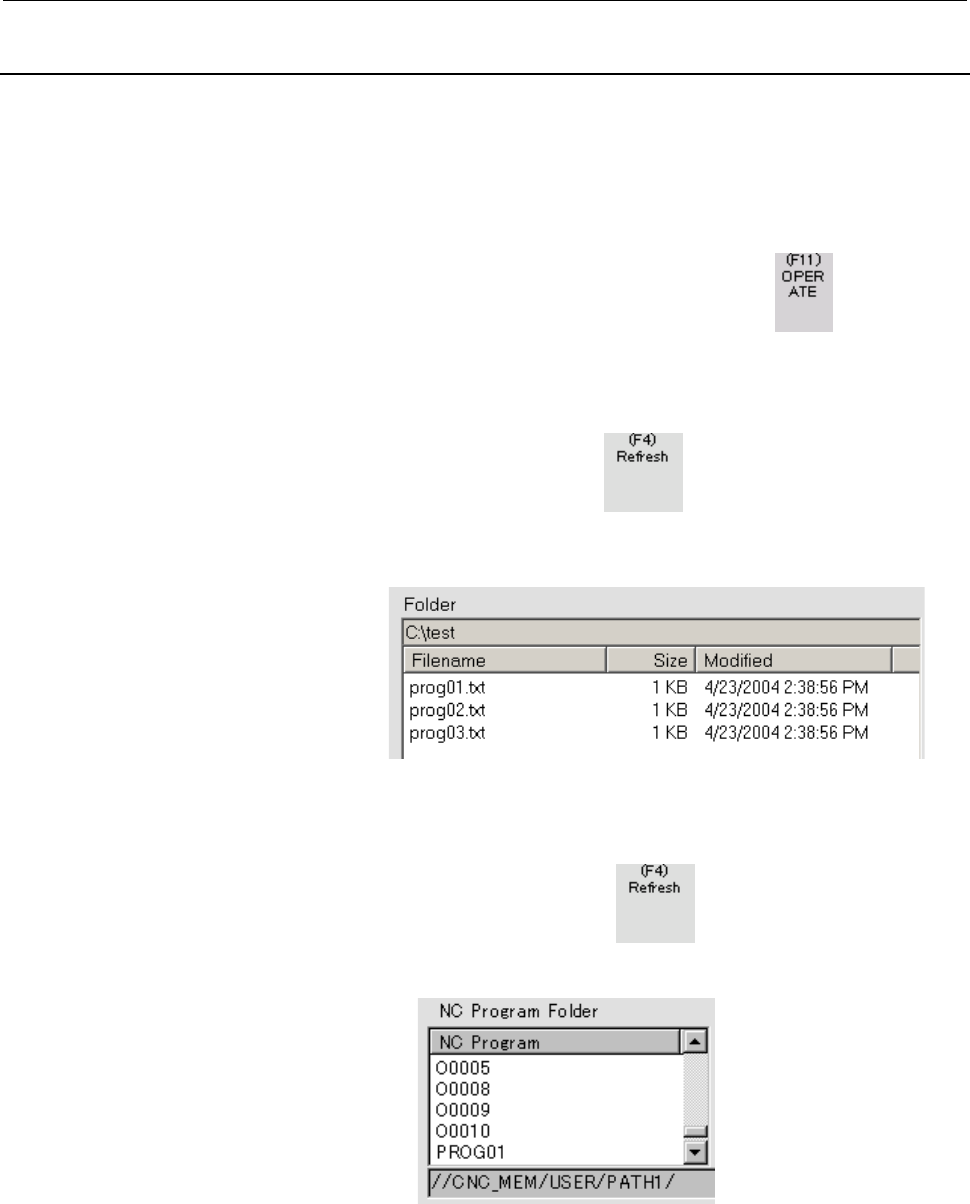

Procedure
1 If the [Data I/O] screen is currently not displayed, display the
[Data I/O] screen as described in Subsection 2.5.4,
"Inputting/Outputting Data".
2 Press the display/operation switching key
to display the
operation keys.
3 Select a folder to be listed, as necessary.
For details, see Subsection 2.5.4.1, "Setting parameters for
input/output".
4 Press the operation key
.
An updated list of data files is displayed.
When NC program is selected as type of data, a list of NC
programs is also displayed as indicated below.
Press the operation key
. The list of NC program is
also refreshed.
A displayed list of NC programs includes the NC programs held
in an NC program folder set as described in Subsection 2.5.4.1,
"Setting parameters for input/output".
