2.STANDARD OPERATION B-63924EN/01
- 90 -
2.3.5 Editing an MDI Program
An MDI program can be edited on Basic Operation Package 2.

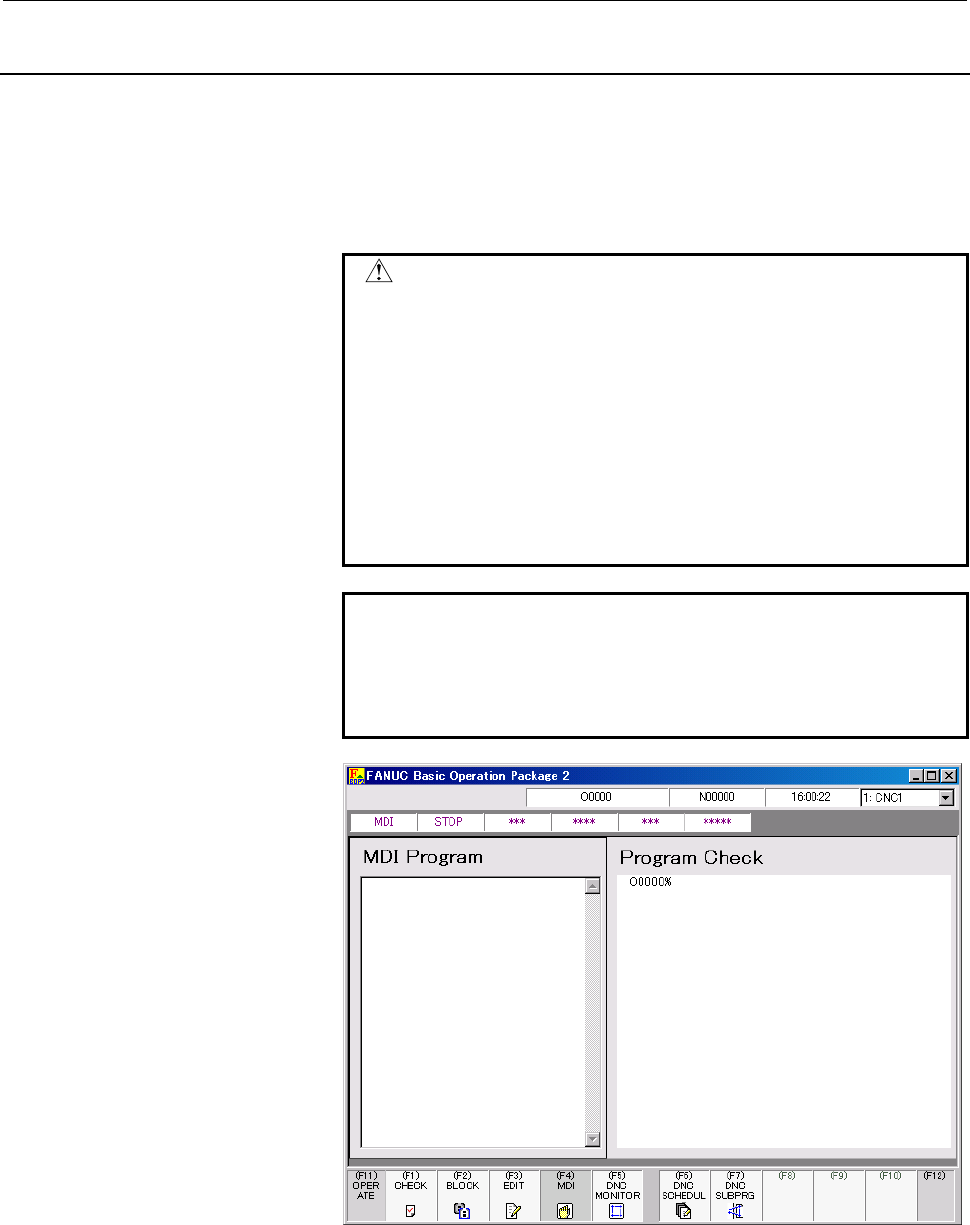

This screen can be displayed by pressing the [PROGRAM] function
key and [MDI] submenu key.
An MDI program can be edited by moving the cursor to a character
string to be edited.
WARNING
• An MDI program on the CNC cannot be updated
simply by editing the MDI program on this screen.
Be sure to send the MDI program to the CNC after
editing.
• Before starting the machine to machine a
workpiece after sending an MDI program to the
CNC, be sure to check that the command values,
compensation values, current position, and
external signal settings of the MDI program are
correct
NOTE
To perform MDI program editing, set the following
status:
• Operation
- Stopped or paused in MDI mode
