2.STANDARD OPERATION B-63924EN/01
- 186 -

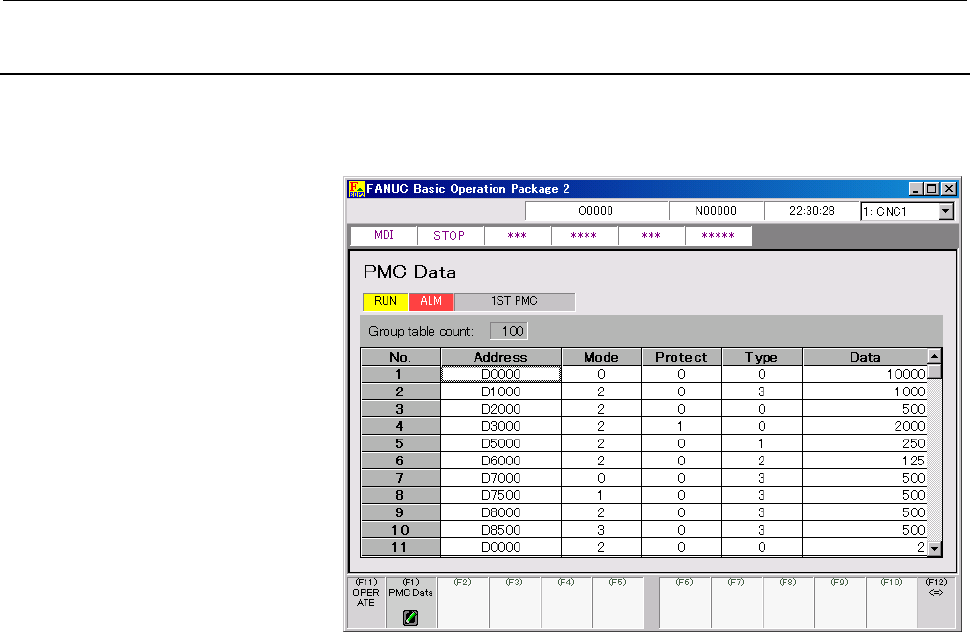

2.5.11.2 Setting the table control data of PMC data
The items of each group table can be set on the table control data
screen.
Procedure
1 If the [PMC Data] screen is currently not displayed, display the
[PMC Data] screen as described in Subsection 2.5.11, "Setting
PMC Data".
2 By pressing the [PageUp] or [PageDown] key on the keyboard
([↑PAGE] or [↓PAGE] key on the MDI panel) or the [←], [→],
[↑], or [↓] (cursor) key, move the cursor to a desired item of the
group table.
3 Set the items of each group table.
For details, see "Explanation".
Explanation
• Address
Set the start address of PMC data.
An address that overlaps another group may be specified.
• Mode
Select a PMC data mode from the following:
0: BCD format
1: Hexadecimal
2: Signed decimal
3: Unsigned decimal
• Protect
From the following, choose whether to enable PMC data to be
written:
0: Enables PMC data to be written
1: Disables PMC data from being written
