2.3.3.1 Switching the NC program directory display
The display of the [Program Edit] screen can be switched.
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.3,
"Displaying the NC Program Directory".
2 Press the display/operation switching key
to display the
operation keys.
3 Switch the mode of program directory display by using the
operation key
.

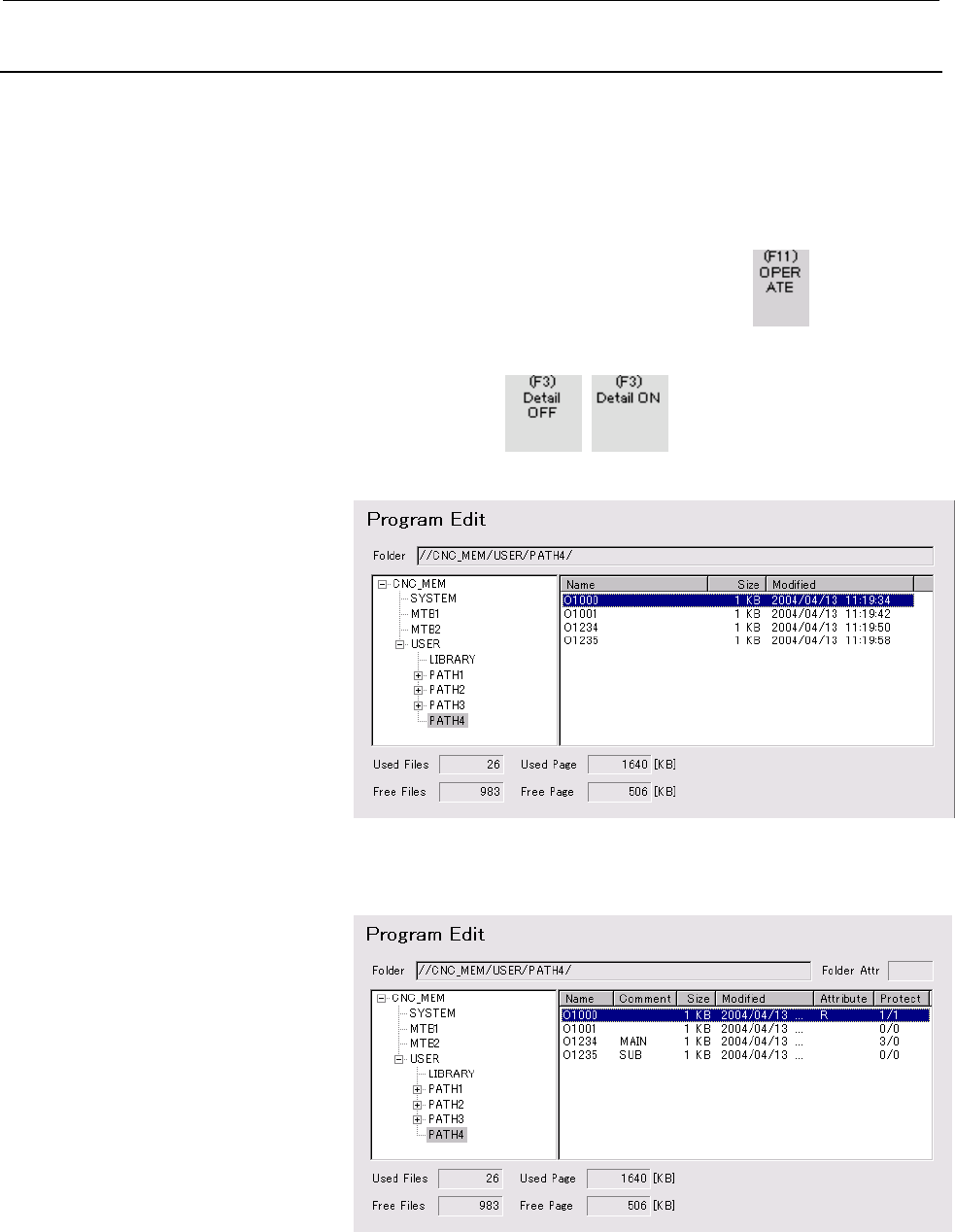

In the overall display mode, the program directory displays
"Name", "Size", and "Modified (date and time)".
In the detail display mode, the program directory additionally
displays "Comment", "Attribute", and "Protect (level)".
Moreover, "Folder Attr" is displayed above the program
directory.
