Open CNC Basic Operation Package 2 Operators manual Page 37

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 17 -

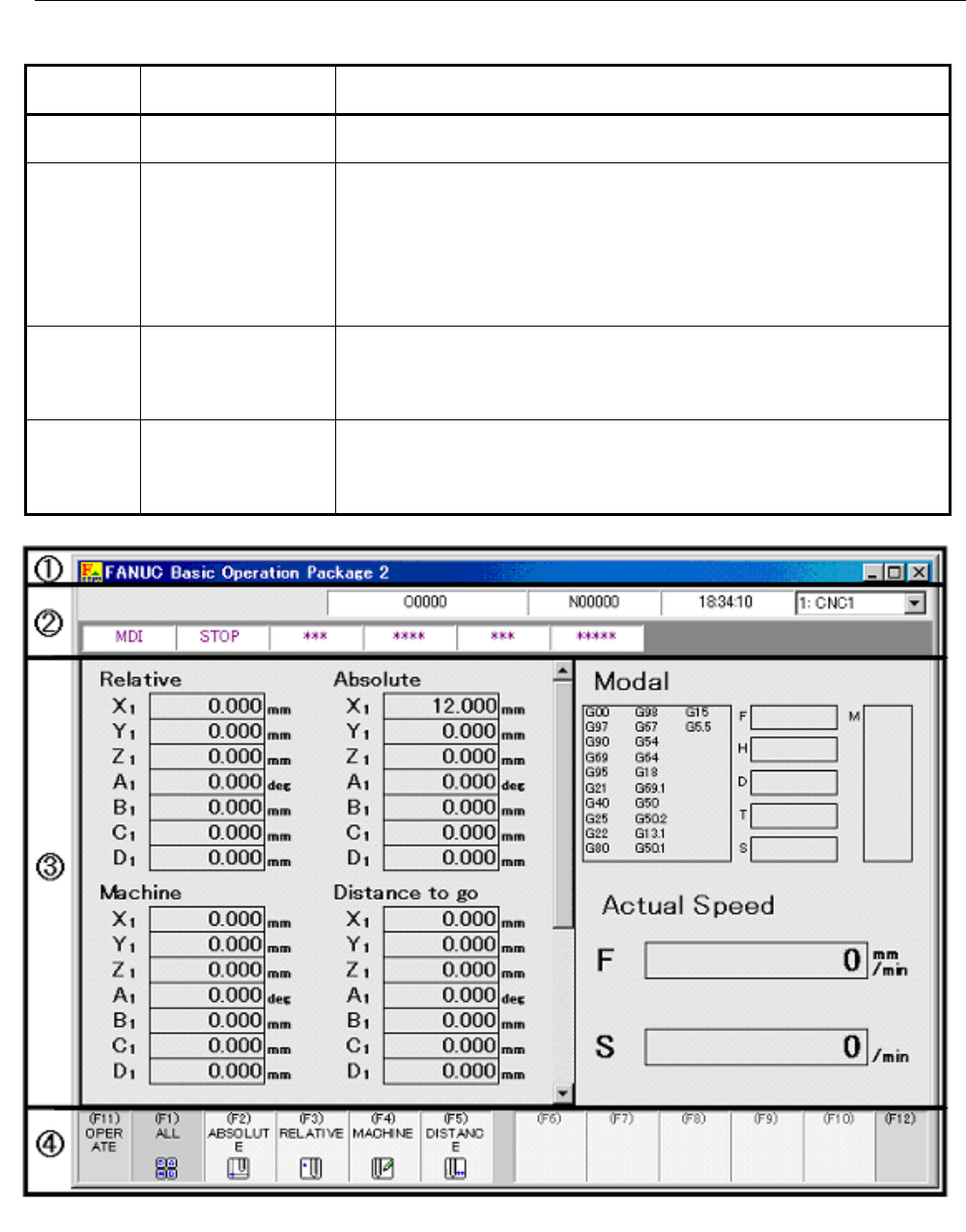

Number in
the screen
Elements making up
the screen
Description
①
Title bar
If a communication error occurs, for example, when the power to the
connected CNC is turned off, the error code is displayed.
②
Status bar
CNC status is displayed.
The upper row displays alarm state (starts blinking when any of the
connected CNCs is placed in alarm state), an NC program number,
sequence number, current time, and combo box for selecting an operation
target CNC (only when connections are made with multiple CNCs).
The lower row displays the operation mode, automatic operation state, and
alarm state of the operation target CNC.
③
Data display area
This area displays child screens for displaying information about the
operation target CNC and for executing various functions.
A thin frame is displayed around the currently active child screen, and the
operation keys for the child screen are enabled.
④
Operation key control
A set of keys for performing operations is provided.
Switch the screen display or perform a screen operation by clicking the
desired key on the screen or pressing the corresponding soft key (or function
key when using the keyboard of the personal computer).
Previous page
Next page
