Open CNC Basic Operation Package 2 Operators manual Page 129

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 109 -
2.3.7.3 Specifying a folder storing subprograms
The folder storing NC programs to be used for a DNC subprogram
call operation can be specified.

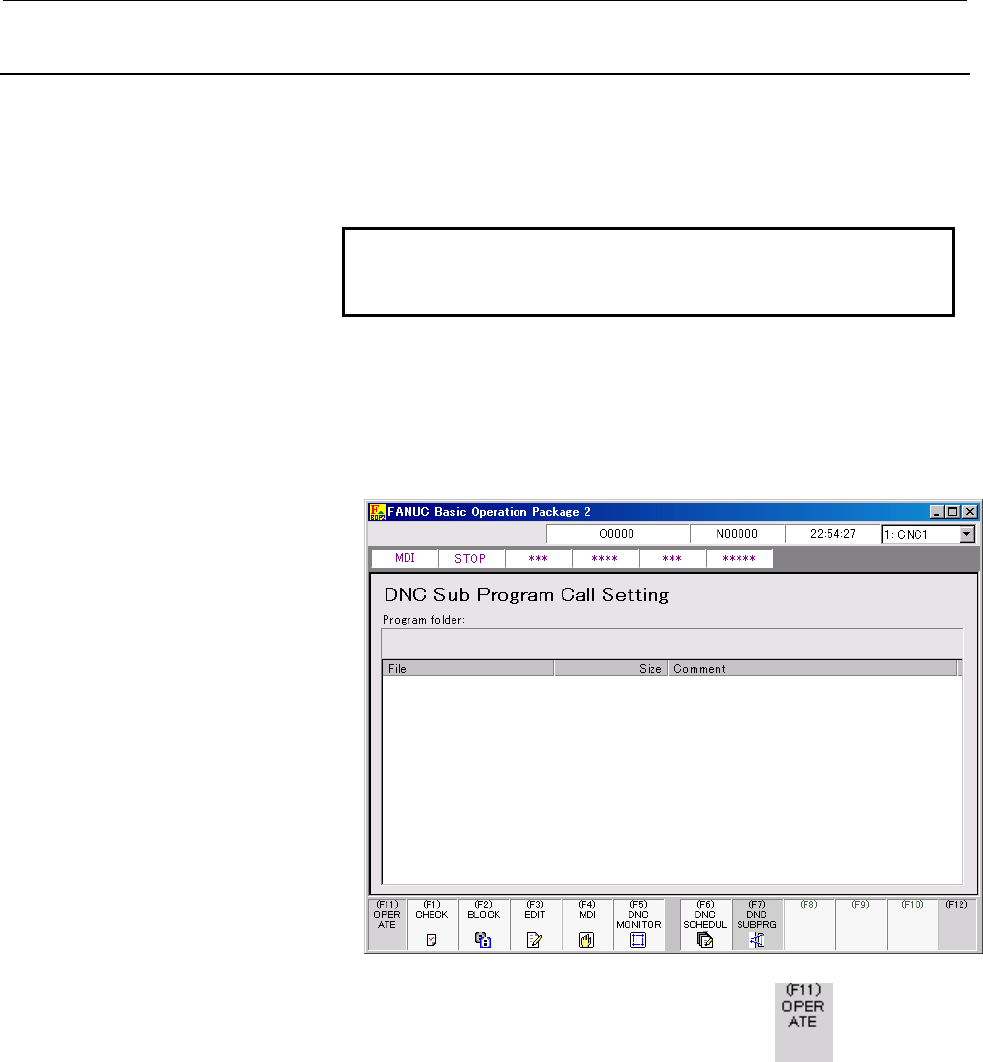

This screen can be displayed by pressing the [PROGRAM] function
key and [DNC SUBPRG] submenu key.
NOTE
During DNC operation, the [DNC Sub Program
Call Setting] screen cannot be operated.
Procedure
1 If the [DNC Sub Program Call Setting] screen is currently not
displayed, display the [DNC Sub Program Call Setting] screen by
pressing the [PROGRAM] function key and [DNC SUBPRG]
submenu key.
2 Press the display/operation switching key to display the
operation keys.
