2.4.4.4 Entering a counter value for a custom macro variable
A coordinate value displayed on the [Relative] screen can be set for
the value of a custom macro variable.
Procedure
1 If the [Custom Macro] screen is currently not displayed, display
the [Custom Macro] screen as described in Subsection 2.4.4,
"Setting a Custom Macro Variable".
2 Press the display/operation switching key
to display the
operation keys.
3 Select a custom macro variable to be set.
4 Press the operation key

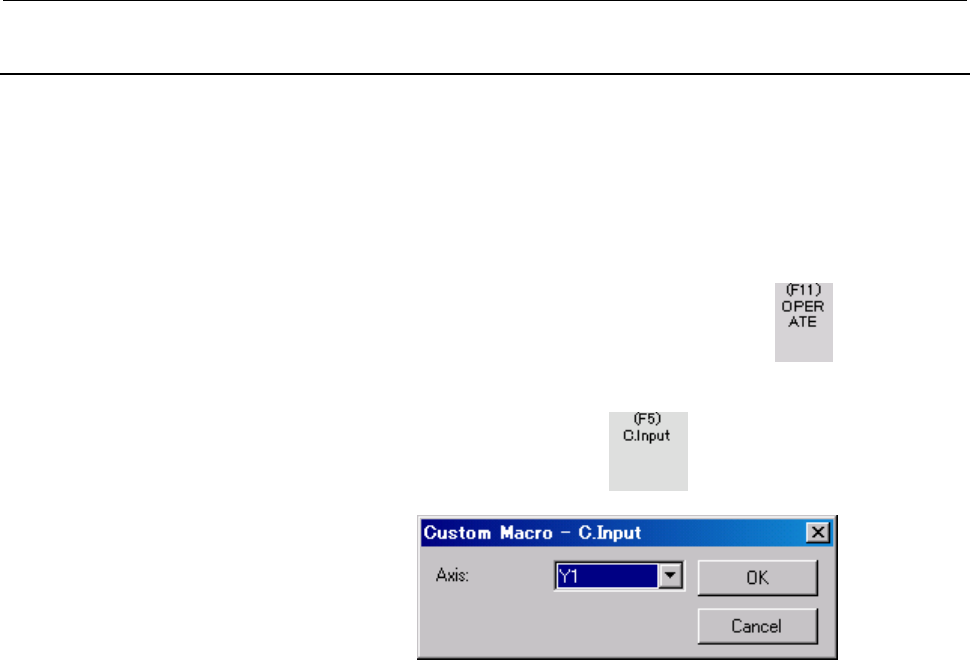

to display the [Custom Macro
- C.Input] screen.
5 Select an axis for a relative coordinate value to be set, then click
the <OK> button. The value of the selected custom macro
variable is set.
