Open CNC Basic Operation Package 2 Operators manual Page 146

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 126 -

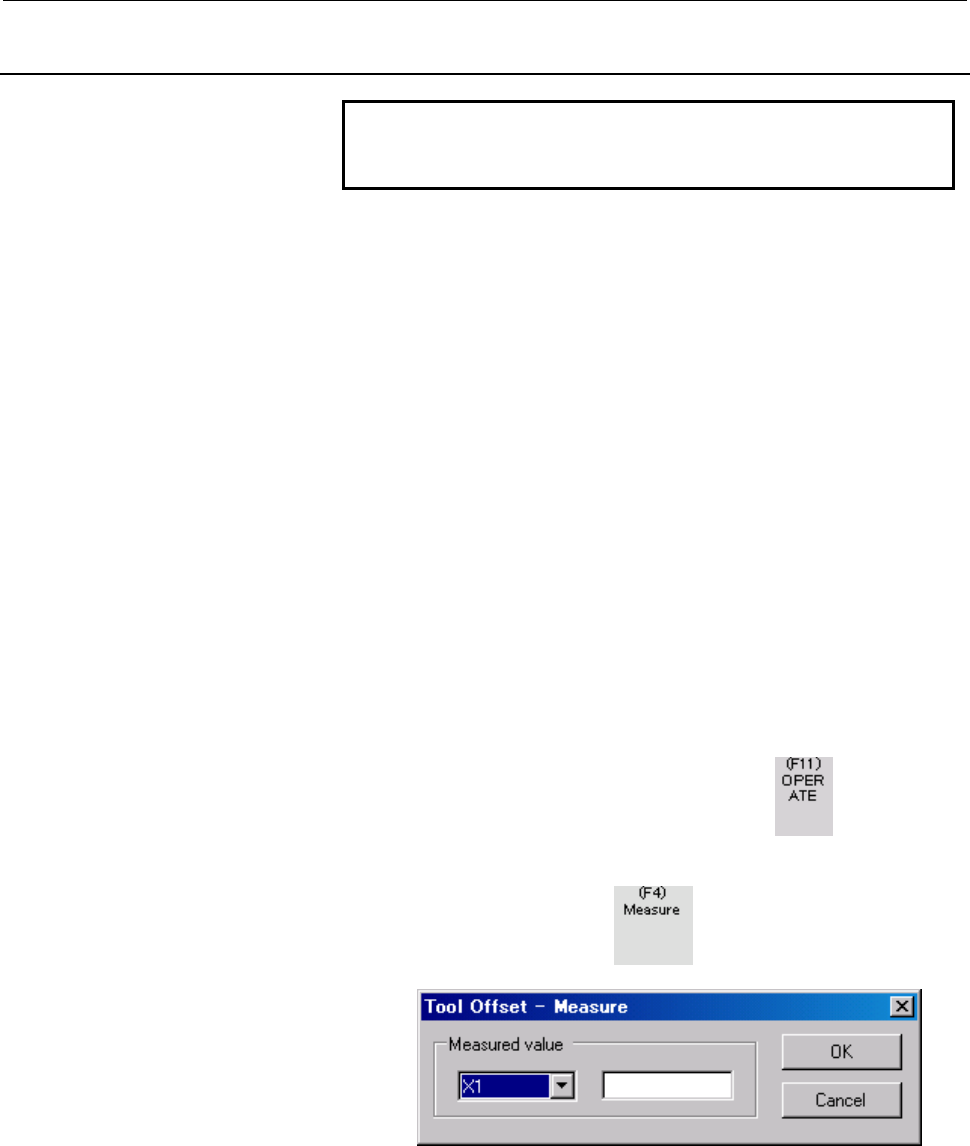

2.4.3.5 Entering a measured value for tool offset data
NOTE
The function for entering a measured value is
supported only for lathe systems.
Tool offset data can be set based on a measured value.
The following value is set as a tool offset value:
Tool offset value = Absolute coordinate value - Measured
value
If a measured value is entered to set a geometry offset value, the
following is set:
Geometry offset value = Absolute coordinate value -
Measured value
Wear offset value = 0
If a measured value is entered to set a wear offset value, the following
is set:
Geometry offset value = No change
Wear offset value = (Absolute coordinate value - Measured
value) - Geometry offset value
Procedure
1 If the [Tool Offset] screen is currently not displayed, display the
[Tool Offset] screen as described in Subsection 2.4.3, "Setting
Tool Offset".
2 Press the display/operation switching key
to display the
operation keys.
3 Select tool offset data to be set.
4 Press the operation key
to display the [Tool Offset -
Measure] screen.
5 Select an axis for which a measured value is to be entered, and
enter a measured value. Then click the <OK> button. The
measured value is set for tool offset data.
