2.4.4.2 Finding a custom macro variable number
The custom macro variable of a specified number can be displayed.
Procedure
1 If the [Custom Macro] screen is currently not displayed, display
the [Custom Macro] screen as described in Subsection 2.4.4,
"Setting a Custom Macro Variable".
2 Press the display/operation switching key
to display the
operation keys.

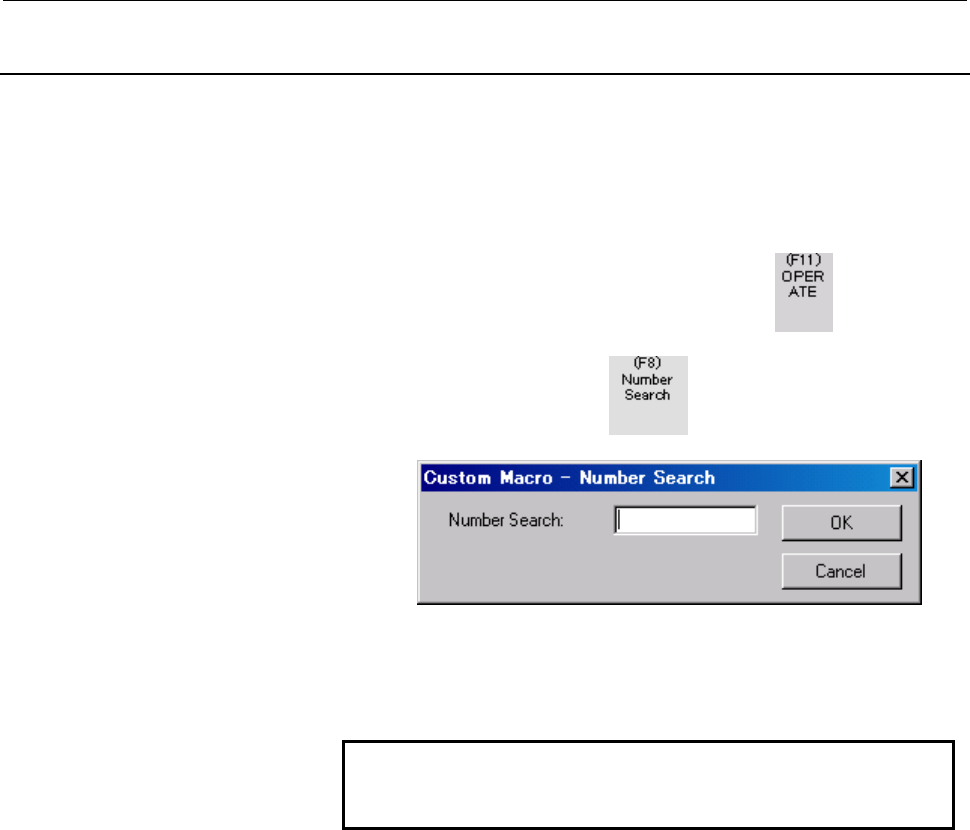

3 Press the operation key
to display the [Custom Macro
- Number Search] screen.
4 Enter a number to be found, then click the <OK> button. The
custom macro variable of the specified number is displayed, and
the cursor moves to the custom macro variable.
NOTE
Only the currently displayed type and range of
custom macro variables can be searched.
