2.STANDARD OPERATION B-63924EN/01
- 96 -

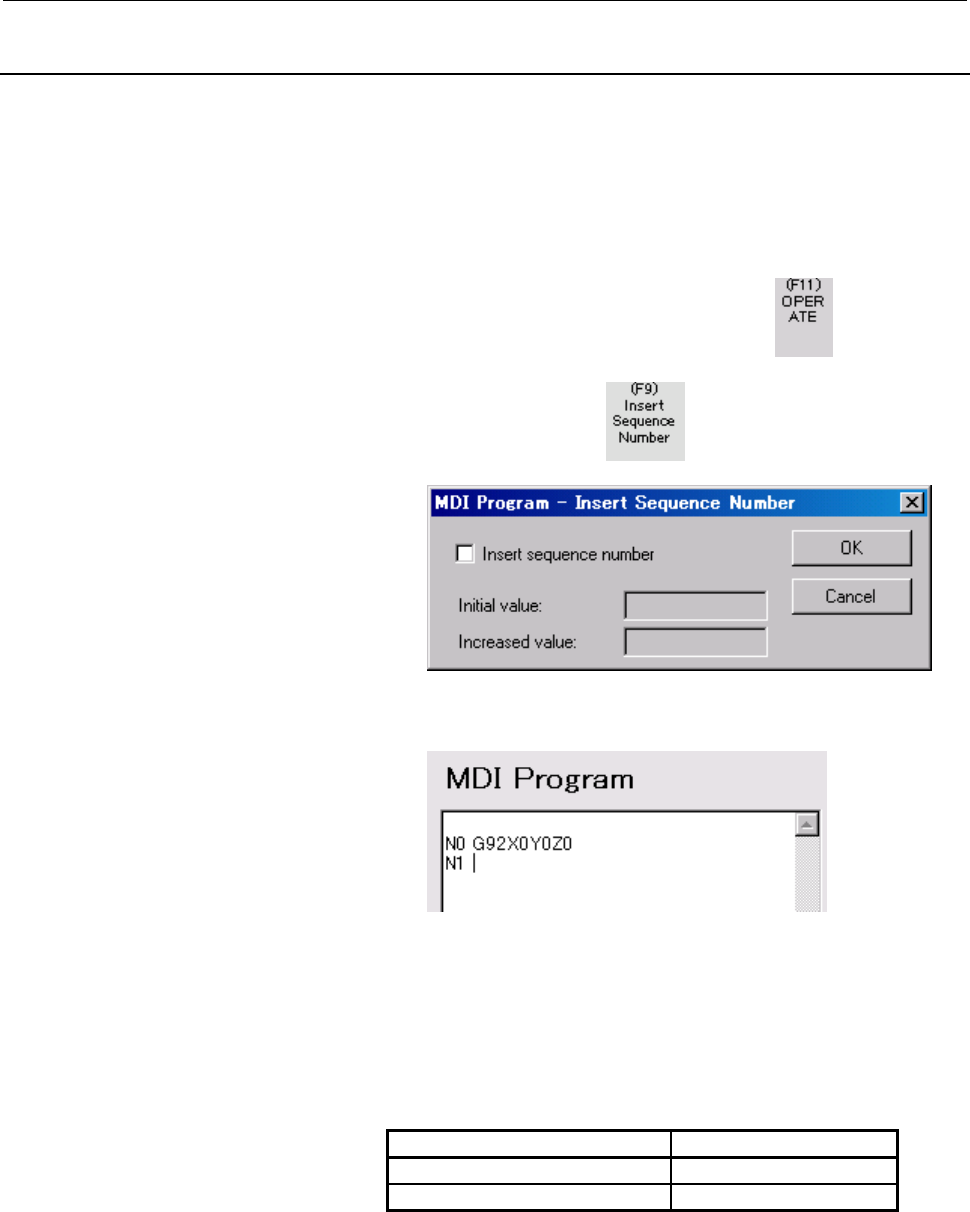

2.3.5.8 Inserting sequence numbers into an MDI program
In the MDI program being edited, sequence numbers can be
automatically inserted for newly created lines.
Procedure
1 If the [MDI Program] screen is currently not displayed, display
the [MDI Program] screen as described in Subsection 2.3.5,
"Editing an MDI Program".
2 Press the display/operation switching key
to display the
operation keys.
3 Press the operation key
to display the [MDI Program -
Insert Sequence Number] screen.
4 Check the [Insert sequence number] check box then set an initial
value and increment. Click the <OK> button.
When you perform a new line operation, a sequence number is
automatically inserted.
Explanation
The initial values of the [MDI Program - Insert Sequence Number]
screen can be set using the following parameters:
Meaning Setting
Enabling automatic insertion No. 0000 bit → 1
Increment No. 3216
