Open CNC Basic Operation Package 2 Operators manual Page 341

Operators manual
B-63924EN/01 3.CUSTOMIZATION
- 321 -
This item allows you to specify how many characters are to be
subjected to conversion from M02, M30, and % to spaces, using
the number of characters counted from the beginning of the
program if “Ignore M02, M30 and %” is enabled.
This is intended to prevent % at the beginning of the program
from being sent.
This setting does not affect subprogram call operation.
• Character count from end of file to start check
This item allows you to specify how many characters are to be
subjected to conversion from M02, M30, and % to spaces, using
the number of characters counted from the end of the program if
“Ignore M02, M30 and %” is enabled.
This is intended to prevent auxiliary function codes and % at the
end of the program from being sent.
This setting does not affect subprogram call operation.

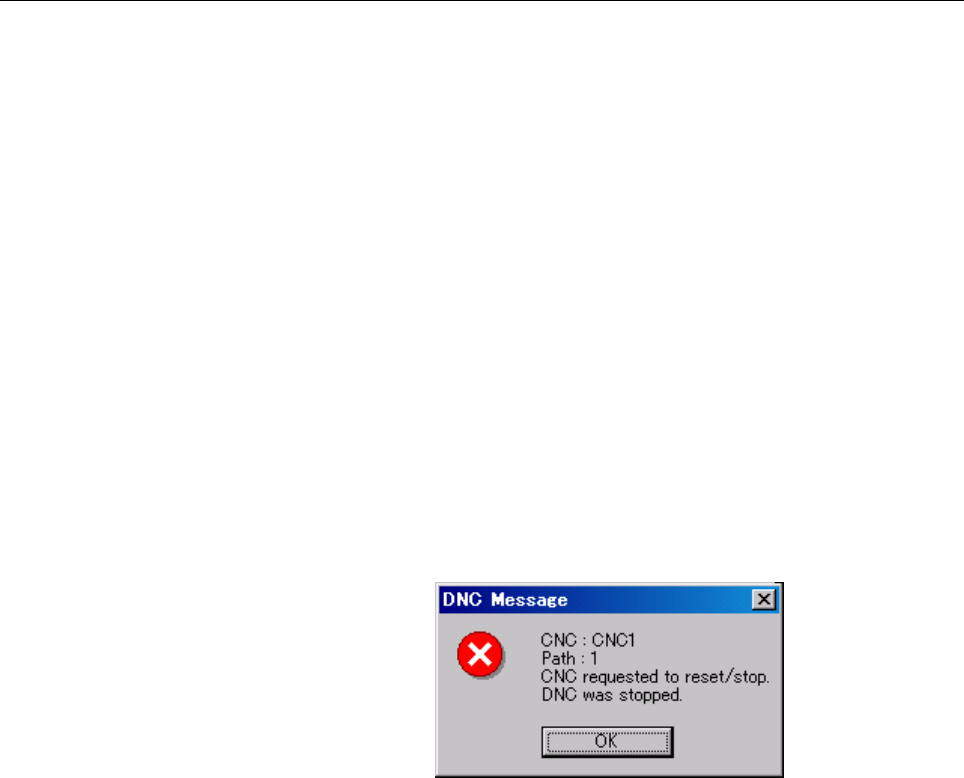

• Notify DNC reset/stop request
If the CNC issues a reset/stop request during DNC operation, the
following message appears:
• Output DNC operation log files
Turning on the check box of this item causes the status of DNC
operation to be written to a file during scheduled or subprogram
call operation. Using this function lowers the performance of
DNC operation.
The log file is directed to the dnclog subfolder in the folder
where Basic Operation Package 2 is installed.
