Open CNC Basic Operation Package 2 Operators manual Page 32

Operators manual
1.SETUP B-63924EN/01
- 12 -
1.4 PROCEDURE AT INITIAL STARTUP
When Basic Operation Package 2 is started initially, a connection
destination CNC needs to be specified. Moreover, a screen size and
display language need to be selected as required.
Procedure
1 Choose [Start Menu] → [Programs] → [Basic Operation Package
2] to start Basic Operation Package 2.

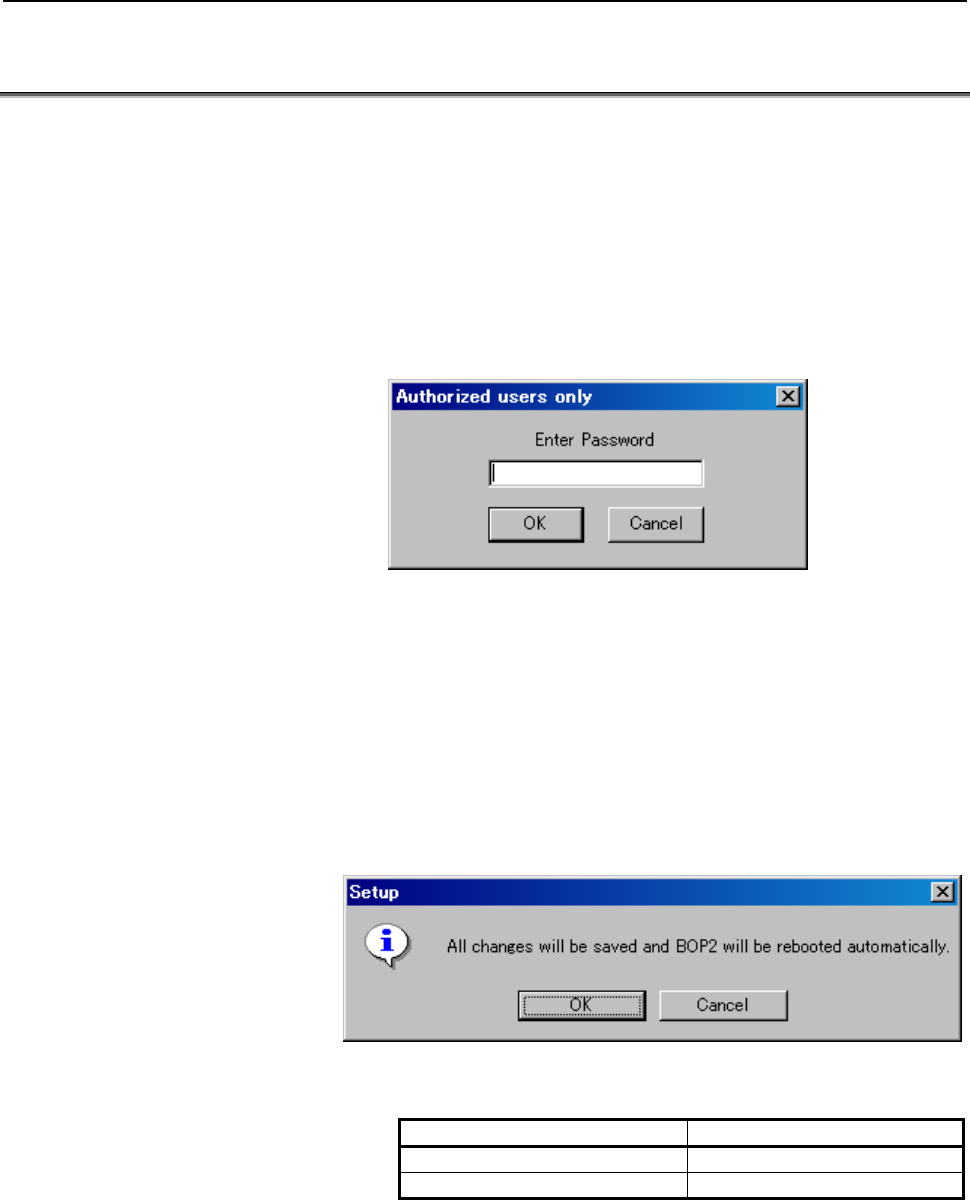

2 In the state immediately after installation, the password input
screen appears after the title screen.
3 Enter the initial password "fanuc" then click the <OK> button.
The connection setting screen appears. Set a connection
destination CNC.
For the methods of connection setting and password handling
and other setting items on the setting screen, see Section 2.7,
"CONFIGURATION".
4 Upon completion of setting, click the <OK> button. The screen
below appears.
Click the <OK> button on this screen. Basic Operation
Package 2 is restarted.
5 When Basic Operation Package 2 is initially started, the
following screen size and display language are set:
Setting item name Setting
Screen size (reference folder) 640×480 (FANUC_VGA)
Display language en (English)
To set a screen size of 1024×768, see Subsection 2.7.4,
"Selecting the Reference Folder of a Screen Definition File".
To change the display language to Japanese, see Subsection 2.7.3,
"Switching Display Language".
