Open CNC Basic Operation Package 2 Operators manual Page 280

Operators manual
3.CUSTOMIZATION B-63924EN/01
- 260 -

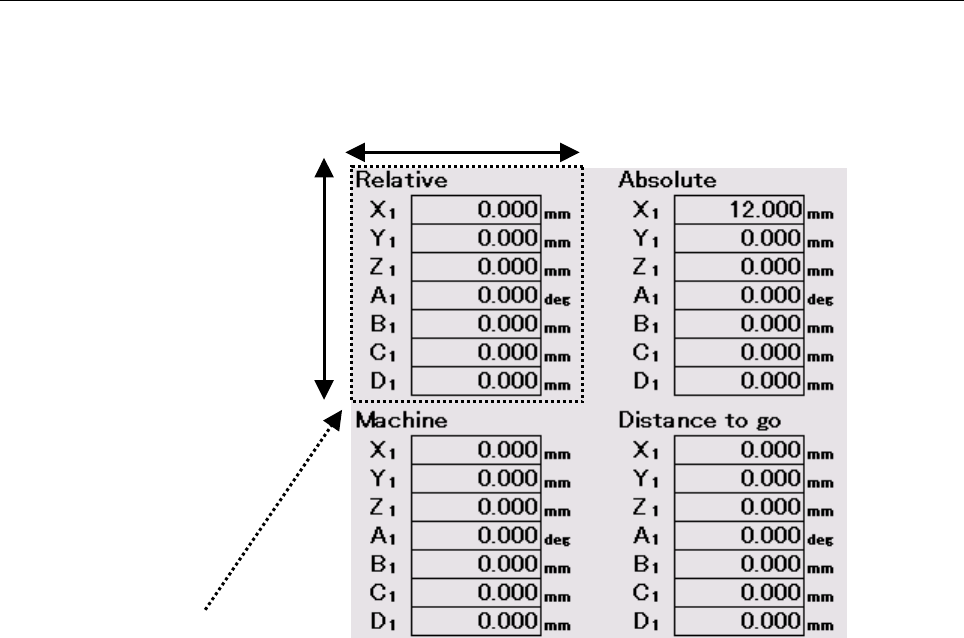

The following [Overall Position] screen exemplifies a 7-axis
application.
• data_series
This item allows you to define the types (such as absolute,
relative, machine, and distance to go) of position information to
be displayed.
Defining only the type of position information to be displayed
enables only the necessary information to be displayed. It is
possible to display more than one piece of information of the
same type; up to 128 pieces can be defined.
• s_no
The s_no tag allows you to define the start number for axis
number displays.
Including 0 causes the title (such as relative or absolute) of axis
information to be displayed automatically.
• e_no
The e_no tag allows you to define the end number for axis
number displays.
Including 0 causes the title (such as relative or absolute) of axis
information to be displayed automatically.
• datatype
The datatype tag allows you to determine the type of position
information about a display axis.
Each position information type is defined, using a character
string as listed below.
Width defined in the size tag in the controlbase tag
Display based on one data_series tag
Height defined in the size tag
in the controlbase tag
