B-63924EN/01 2.STANDARD OPERATION
- 137 -
2.4.5.1 Finding a workpiece origin offset data number
The workpiece origin offset data of a specified number can be
displayed.
Procedure
1 If the [Work Zero Offset] screen is currently not displayed,
display the [Work Zero Offset] screen as described in Subsection
2.4.5, "Setting Workpiece Origin Offset".
2 Press the display/operation switching key
to display the
operation keys.

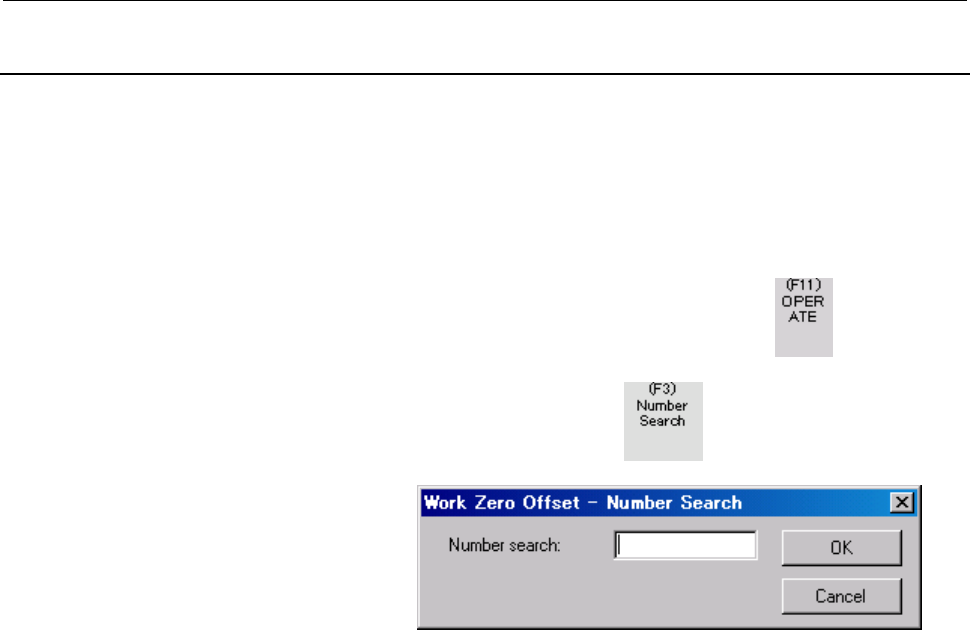

3 Press the operation key
to display the [Work Zero
Offset - Number Search] screen.
4 Enter a number to be found, then click the <OK> button. The
cursor moves to the workpiece origin offset data of the specified
number.
