Series 15i/150i - MA (Operation) Operators manual Page 105

Operators manual
3.MANUAL OPERATION OPERATION B-63324EN-1/03
- 84 -

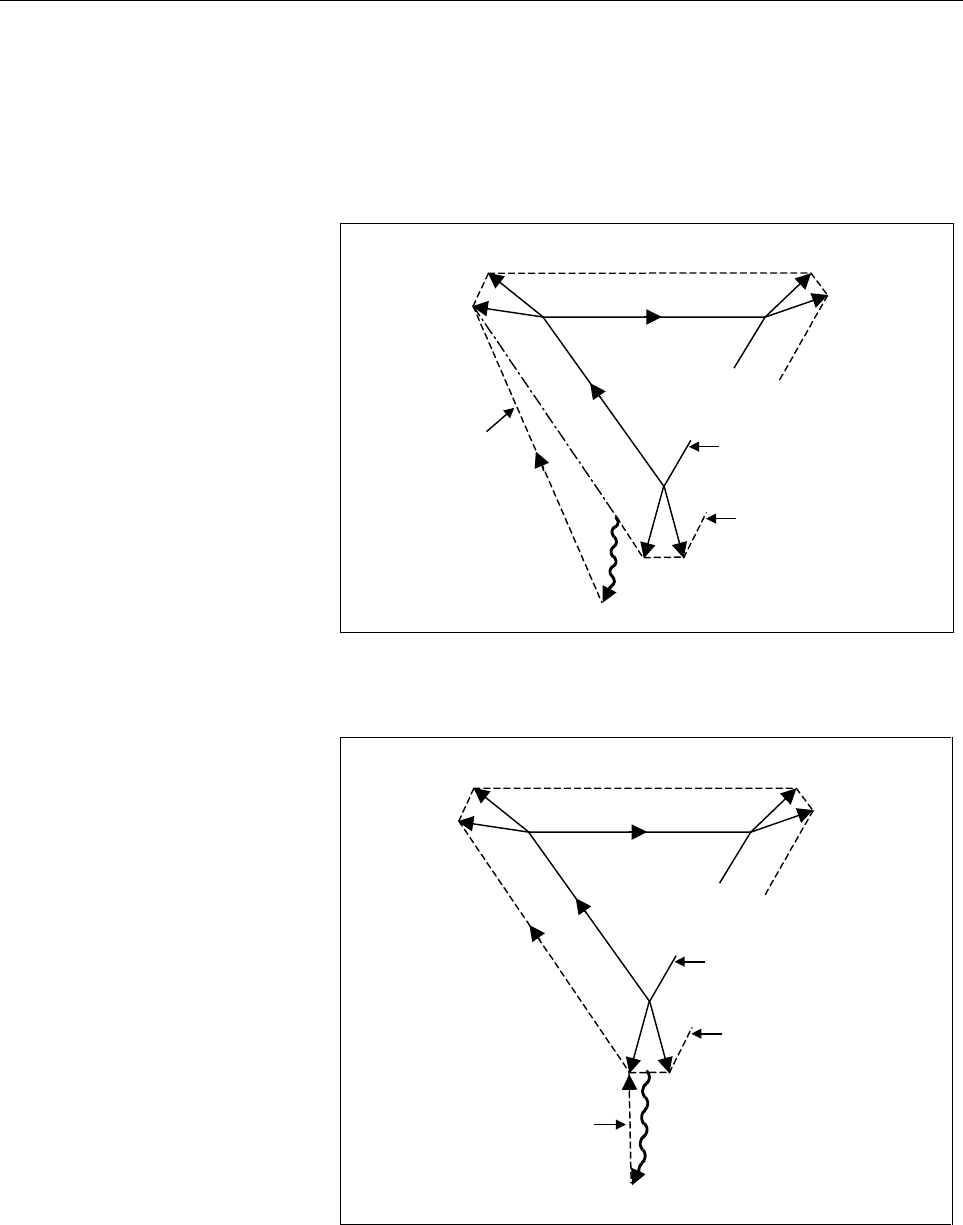

When the switch is ON during cutter compensation
Operation of the machine upon return to automatic operation after
manual intervention with the switch is ON during execution with an
absolute command program in the cutter compensation mode will be
described.
After manual intervention, the tool moves so that the tool center moves
towards the end of the next vector in the program.
V
C1
V
B2
P
H
P
A
P
B
P
C
V
C2
Manual operation
Cutter path after
manual operation
Cutter path before
manual operation
Programmed path
(absolute command)
P
H’
V
B1
Also, after manual operation is performed during corner movement in
cutter compensation mode, the tool moves so that the tool center moves
towards the end of the next vector in the program.
V
C1
V
B2
P
H
P
A
P
B
P
C
V
C2
Manual operation
Cutter path after
manual operation
Cutter path before
manual operation
Programmed path
(absolute command)
P
H’
V
B1
V
A2
After manual intervention is performed when the execution of a block
has been terminated by single block stop, the tool also moves so that the
tool center moves towards the end of the next vector in the program.
