10.DISPLAY OPERATION B-63324EN-1/03

- 480 -

10.12 FLOPPY DIRECTORY SCREEN

The floppy directory screen provides functions for using the FANUC

Floppy Cassette, FANUC FA Card, FANUC Handy File, and FANUC

PROGRAM FILE Mate connected to the serial interface (RS-232C or

RS-422) and a variety of utilities.

1 Output data such as part programs and parameters to an external

unit

2 Input data such as part programs and parameters from an external

unit

3 List the files on an external unit

4 Delete files from an external unit

Display

Follow the procedure described in Section II-2.3, 2.5, "Setting the

Offset" to display the floppy directory screen.

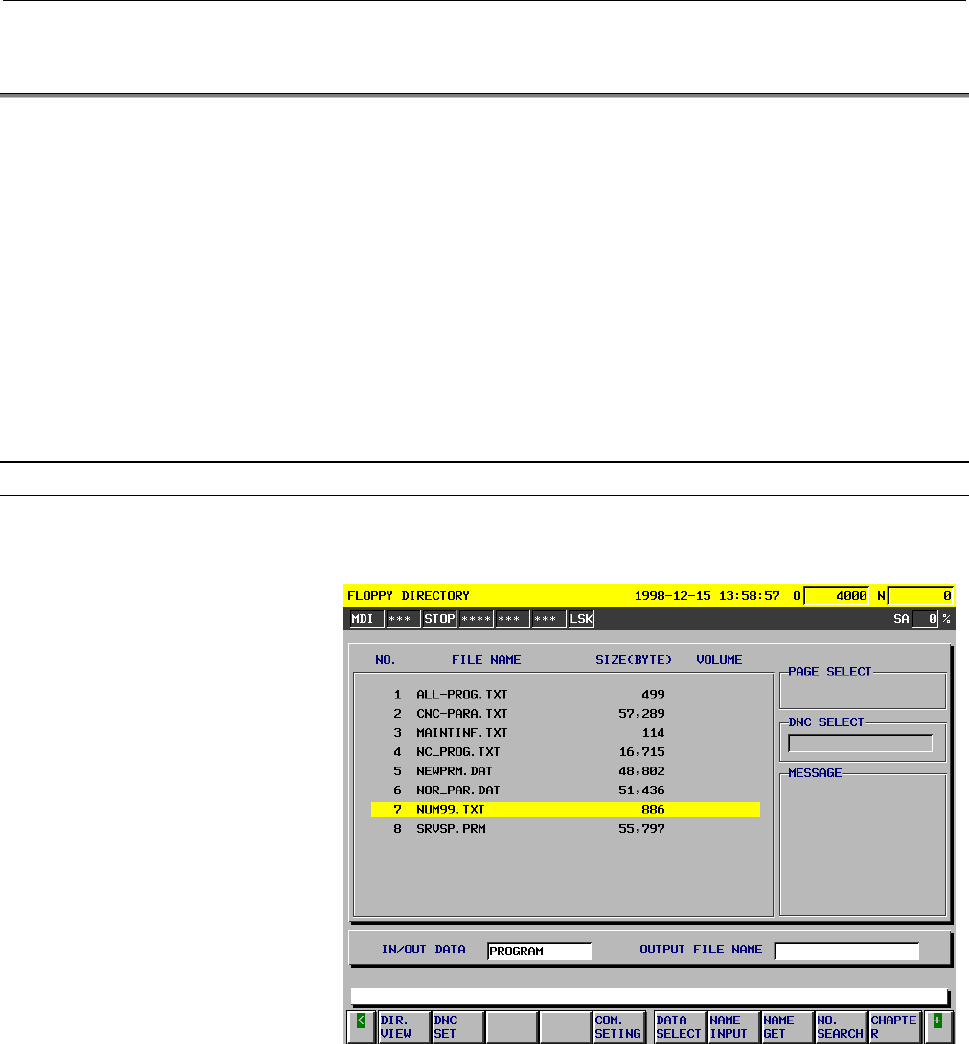

Fig.10.12 (a) Floppy Directory Screen

- Listing the files on a floppy

The files contained on an inserted floppy or FA card can be listed. Up

to 12 files can be listed per page.

Number : File number

File name : File name

Size : File size (in bytes)

Volume : Volume number of a multivolume file

A multivolume file is a file stored on multiple floppies.

The volume numbers indicate the order of these

floppies.
